Introducing New EX Drive Shaft Extension


April 18, 2016
Whitney VanKlaveren – Marketing Communications Coordinator

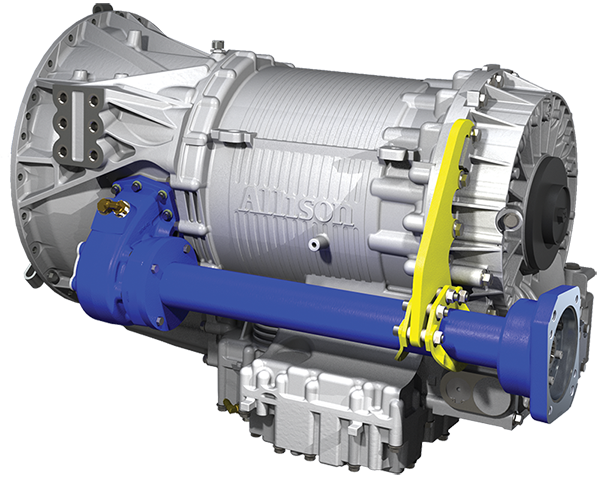

An image of the EX Drive, shown in blue, attached to an Allison transmission, shown in gray, using a pump support bracket, shown in yellow.Muncie Power Products introduces the EX Drive, its latest power take-off shaft (PTO) extension, designed to fit popular Allison 3000/4000 Series transmissions with or without a retarder or cooler.

The EX Drive replaces the driveline, allowing for direct mounting of large gear or piston pumps while reducing installation time. Its minimized housing diameter allows for installation in even the tightest spaces.

Providing maximum torque from the PTO, the shaft extension is available for both clutch-shift and constant-drive PTOs. Its wet-spline design virtually eliminates fretting corrosion of the pump and PTO shafts.

The EX Drive boasts a welded tube housing and clamping bracket. These elements create an extremely flexible design, which can be adapted to fit nearly any application.

Featuring four output options for popular pump models (S.A.E. B, BB, C and DIN 5462), the shaft extension’s rotatable flange allows the pump to be clocked for optimal positioning.
