Metal Upright Reservoirs

Muncie offers metal upright tanks available in both aluminum and steel. Aluminum reservoirs are offered when weight, appearance and performance are important, while steel is the preferred solution when quality and dependability are required. Our premium quality reservoir is designed for hard working, continuous-duty applications that may generate high amounts of heat and other applications where a metal tank is preferred.

Muncie's aluminum and steel round hydraulic reservoirs are offered when weight, appearance, durability, reliability or accessibility are important. Offered in a large variety of sizes, our premium quality round reservoirs are designed for hard working, continuous-duty applications that may generate high amounts of heat and other applications where a metal reservoir is preferred.

Brochure
  • Aluminum and Steel Reservoir Upright, Design B- OBSOLETE / OLD STYLE
    MP10-07
Installation Instructions
  • Installation Instructions for 50 and 70 Gallon Upright Reservoirs (S50BU2X)
    IN96-01
Service Parts Manual
  • Installation Instructions for 50/70/100 gallon aluminum and steel upright tanks
    SP13-03
  • Custom hydraulic reservoirs for your application needs
    Steve McElroy – Director of Business Development
  • Hydraulic Reservoirs: Customized for You
    Whitney Rodeffer – Marketing Communications Coordinator
  • Comprehensive Line of Premium Quality Hydraulic Reservoirs
    Whitney VanKlaveren – Marketing Communications Coordinator
METAL UPRIGHT RESERVOIR MODELS

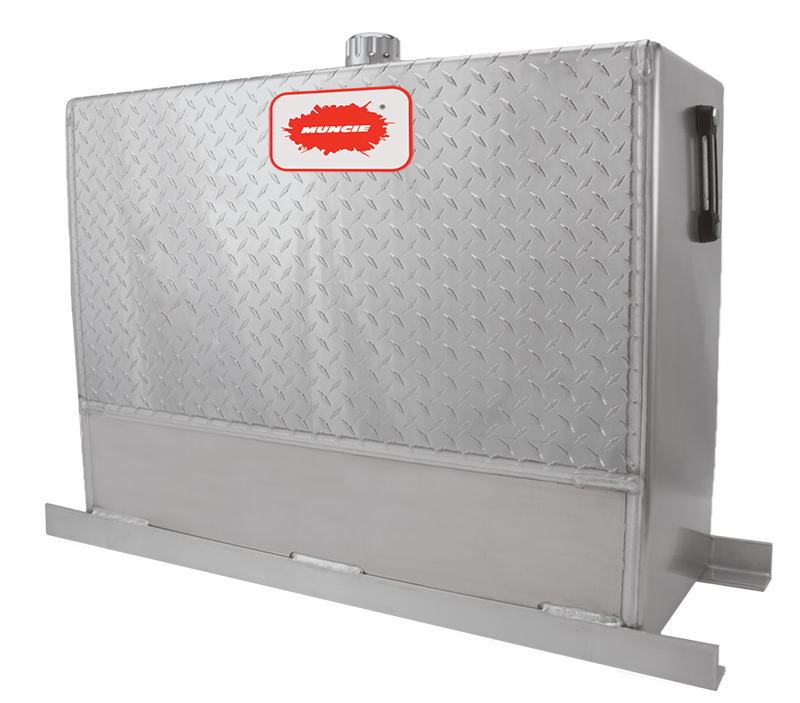

 Aluminum Models
Volume
Ports
Filter
Dimensions
Weight
A050U2AAGXY 50 GAL. 2 - 35"L X 13"W X 26"H 77 LBS
A070U2AAGXY 70 GAL. 2 - 50"L X 13"W X 26"H 90 LBS
A100U3AAGXY 100 GAL. 3 - 48"L X 16"W X 30"H 130 LBS

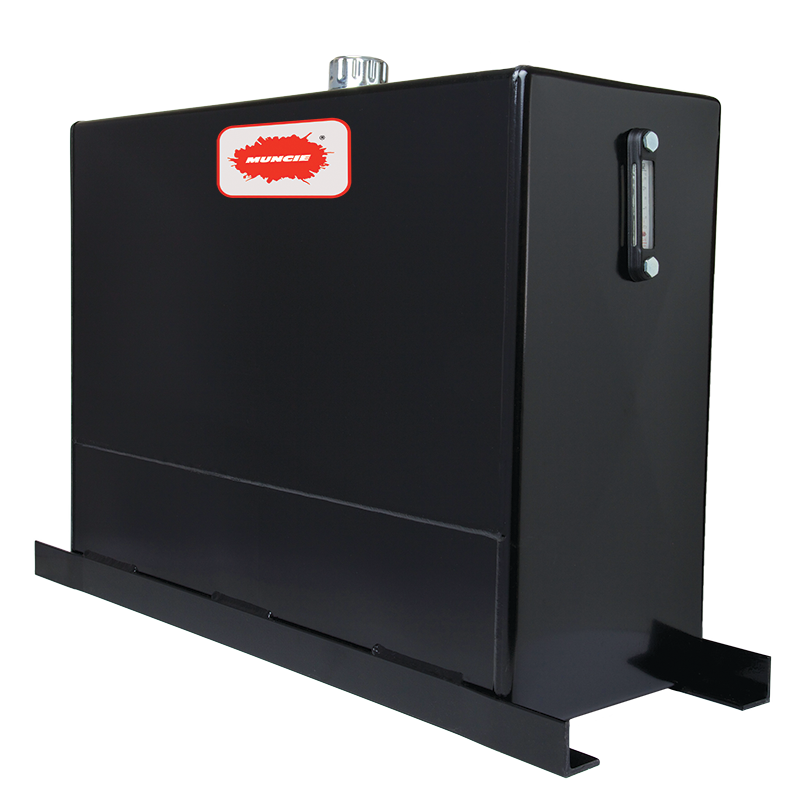

Steel Models Volume Ports Filter Dimensions Weight
S050U2AAGXY 50 GAL. 2 - 35.5"L X 13"W X 26.25"H 150 LBS
S050U2AAGNY 50 GAL. 2 OPT. 35.5"L X 13"W X 26.25"H 150 LBS
S070U2AAGXY 70 GAL. 2 - 50.5"L X 13"W X 26"H 187 LBS
S100U3AAGXY 100 GAL. 3 - 48"L X 16.5"W X 30"H 248 LBS
Notes: 1. Standard port size is 2” NPT. 2. Weight includes mounting kit.

The Muncie aluminum or steel hydraulic oil reservoir is warranted for one year from the time it is first installed upon the equipment against any defect in material and workmanship that causes the reservoir to fail to hold oil which existed when sold by Muncie, according to the following provisions, subject to the requirements that the reservoir must be used only in accordance with catalog and package instructions. If the defective part is returned to Muncie with transportation prepaid, the defective part will be repaired or replaced, at Muncie’s election.

The above warranties shall terminate if any alterations or repairs are made to the product other than at a service center owned by Muncie, or if the product is used on any equipment other than the equipment upon which it is first installed.

THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESS OR IMPLIED AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.

MODEL NUMBER CONSTRUCTION
