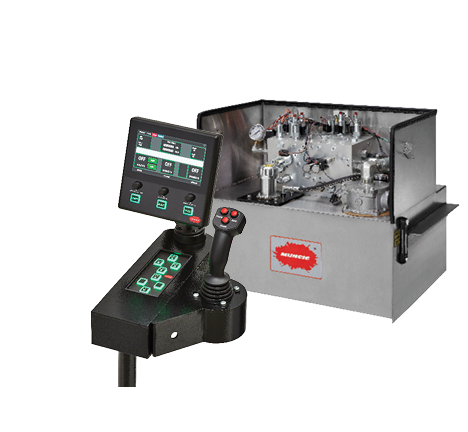

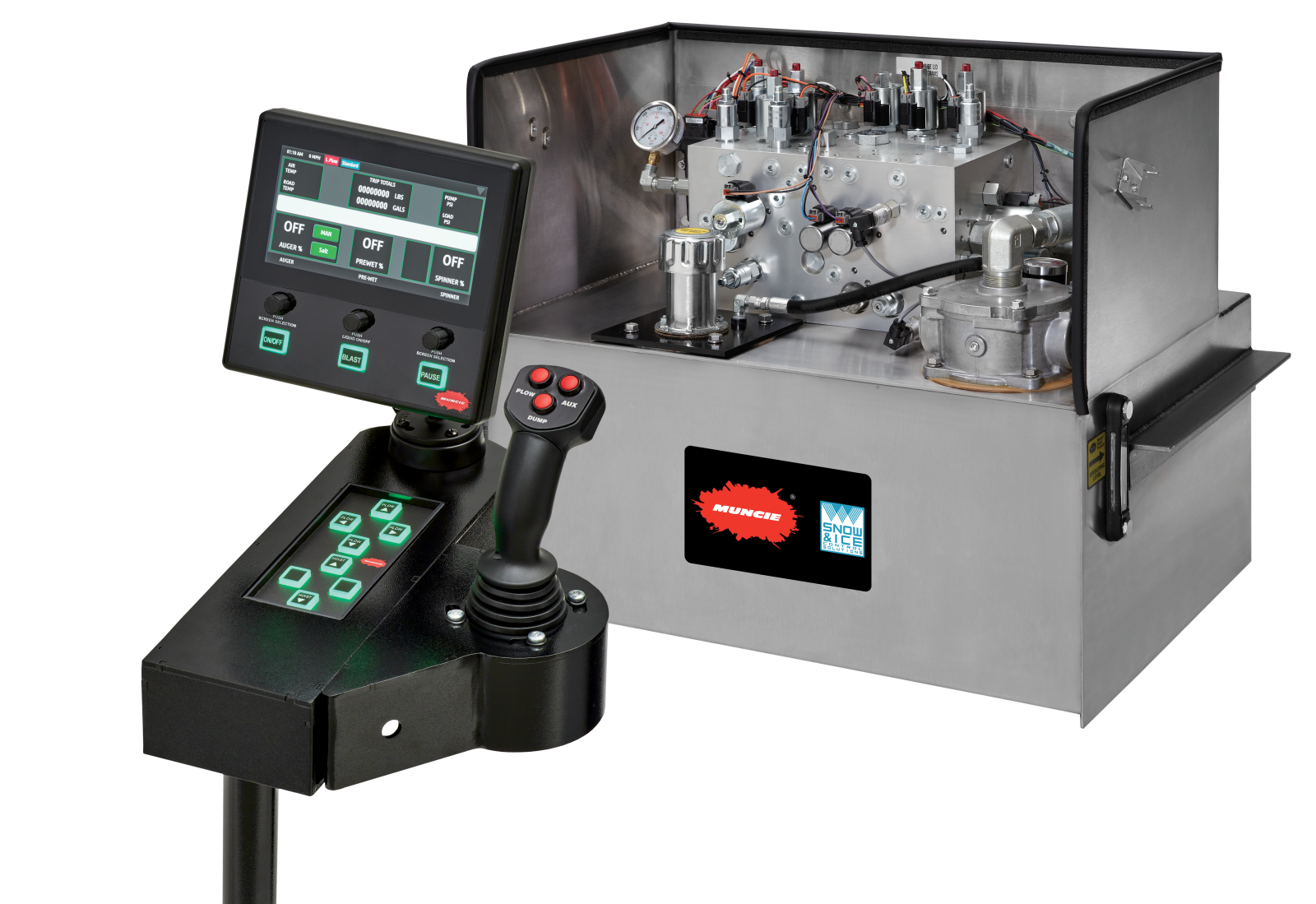

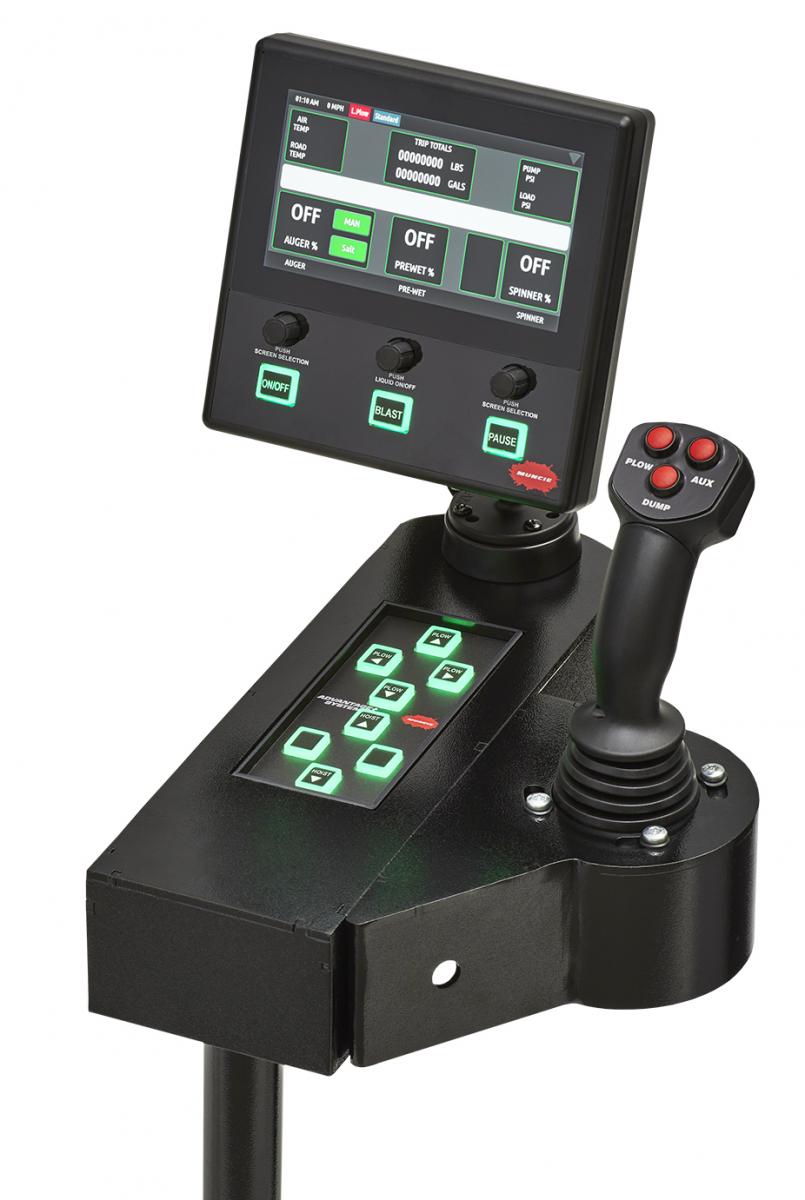

Omni-System® Plus

The Omni-System Plus is a high-technology snow and ice control solution that increases reliability and revolutionizes the way in which your fleet is operated and maintained. With features like remote diagnostic support via Wi-Fi, flow sharing, cartridge valve technology, multi-camera inputs, video playback, and enhanced data-logging, we’re changing the game—big time.

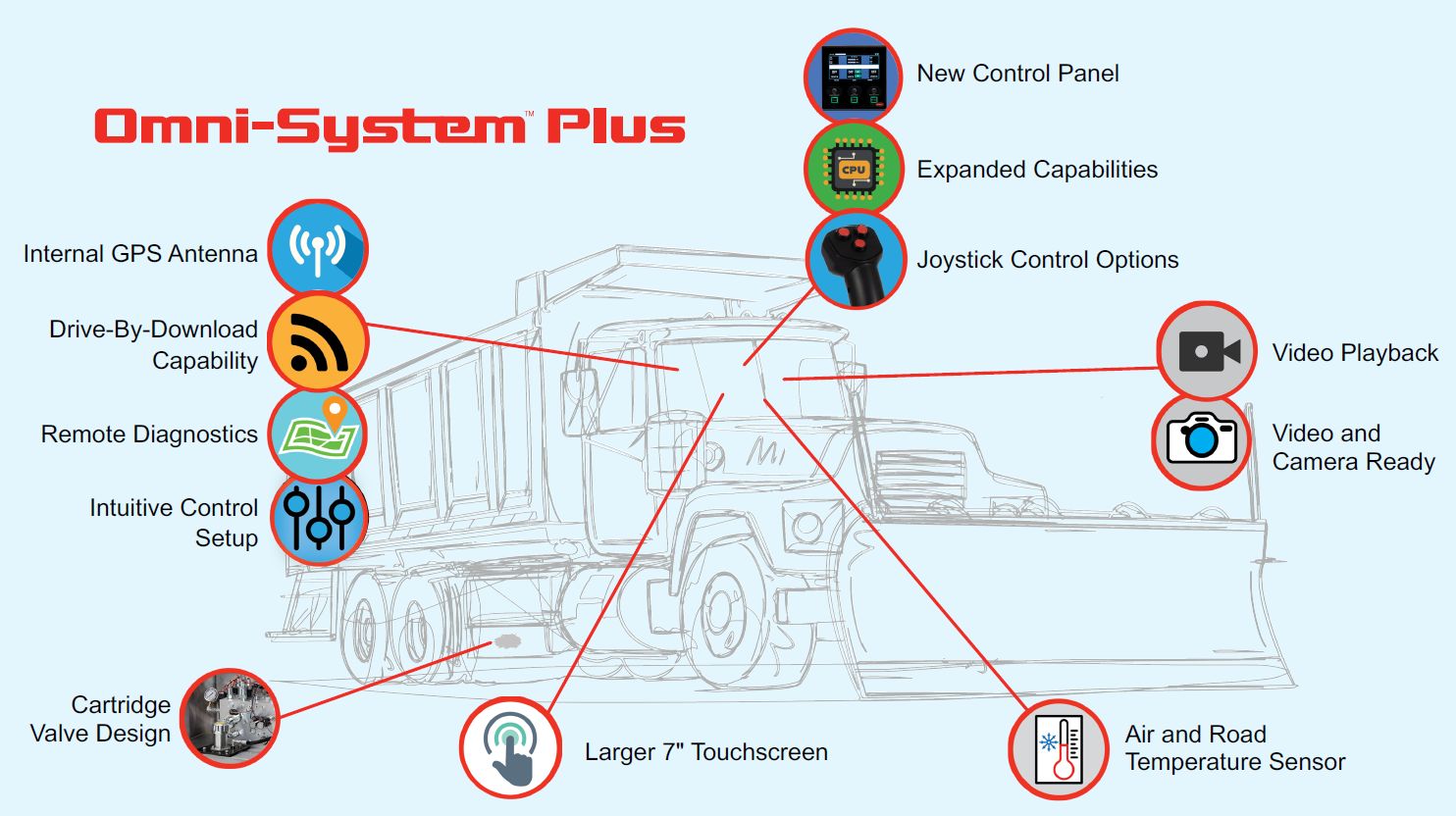

Hover over icons

VIDEO PLAYBACK

Shorten the learning curve for new operators with preloaded onboarding videos in the controller to be viewed in cab

VIDEO AND CAMERA READY

Safety
Operator has clear line of sight of obstacles, including people that may be standing nearby

Material Conservation
Easily view the spread pattern and better utilize granular materials being output from the system
Equipment Consolidation
Reduce installation time and wiring complexity by utilizing one display for both spreader control and camera viewing

Camera Wash
Cameras are compatible with various camera wash systems
Digital Video Recording (DVR)
Record up to 2 channels simultaneously and export files onto a USB drive or 32 GB SD card

Surrounding Views
Up to 4 camera can be connected into the systems (more details on other side)

AIR AND ROAD TEMPERATURE SENSOR

Provides operators with current and accurate data to make application decisions

NEW CONTROL PANEL

New rigid construction better protects electrical hardware

EXPANDED CAPABILITIES

Improved operator performance and processing capability

JOYSTICK CONTROL OPTIONS

Multiple joystick configurations available for optimum cylinder control

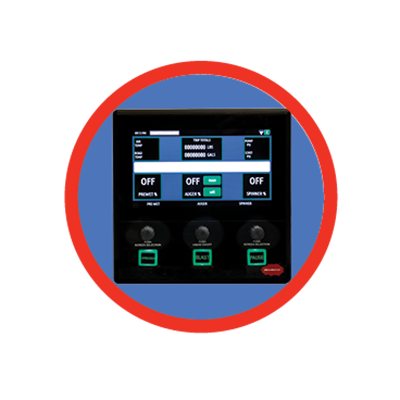

LARGER 7" TOUCHSCREEN

Vivid, easy-to-read capacitive touchscreen

INTERNAL GPS ANTENNA

Prevents operators from disconnecting GPS tracking

DRIVE-BY DOWNLOAD CAPABILITY

Integrated with Wi-Fi connectivity

REMOTE DIAGNOSTICS

Remotely connect to Muncie Power for setup and diagnostic assistance

INTUITIVE CONTROL SETUP

Turnkey ready system is easier to setup and operate

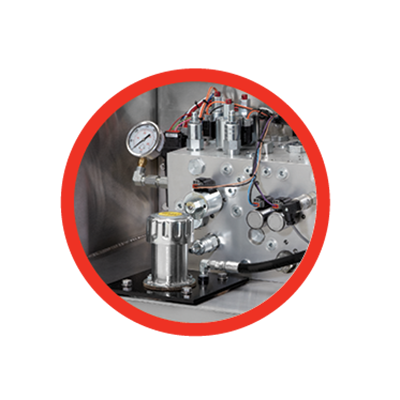

CARTRIDGE VALVE DESIGN

Premium solution for hydraulic circuits: reduces internal hose connections for simpler install, easier to service, and includes flow sharing to keep all functions operating

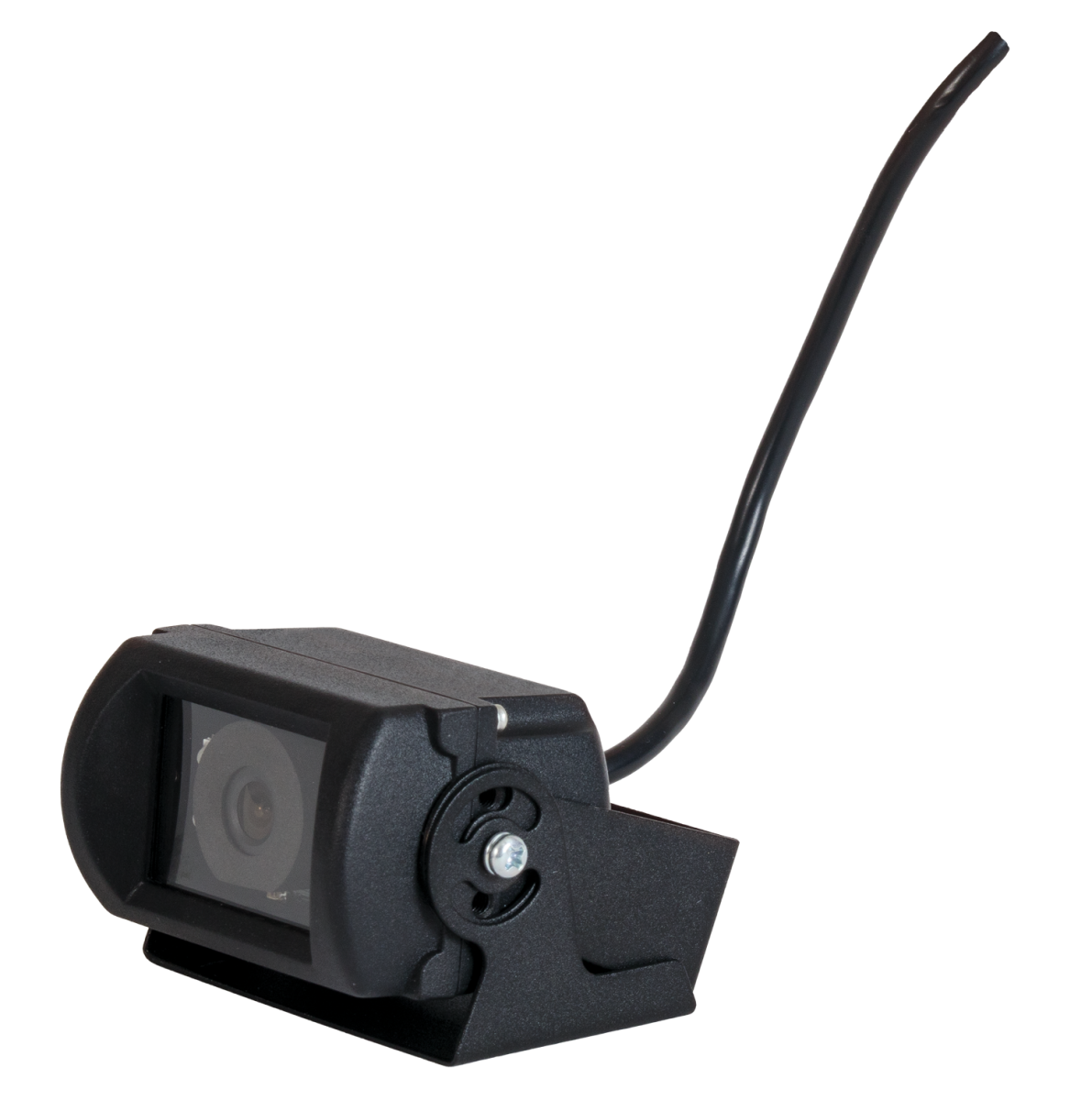

INNOVATIVE CAMERA CAPABILITIES
  • SAFETY - Operator has clear line of sight of obstacles, including people that may be standing nearby.
  • MATERIAL CONSERVATION - Easily view the spread pattern and better utilize granular materials being output from the system.
  • EQUIPMENT CONSOLIDATION - Reduce installation time and wiring complexity by utilizing one display for both spreader control and camera viewing.

  • CAMERA WASH - Cameras are compatible with various camera wash systems.

  • DIGITAL VIDEO RECORDING (DVR) - Record up to 2 channels simultaneously and export files onto a USB drive or 32 GB SD card.

  • 4X SURROUNDING VIEWS - Up to 4 cameras can be connected into the system.

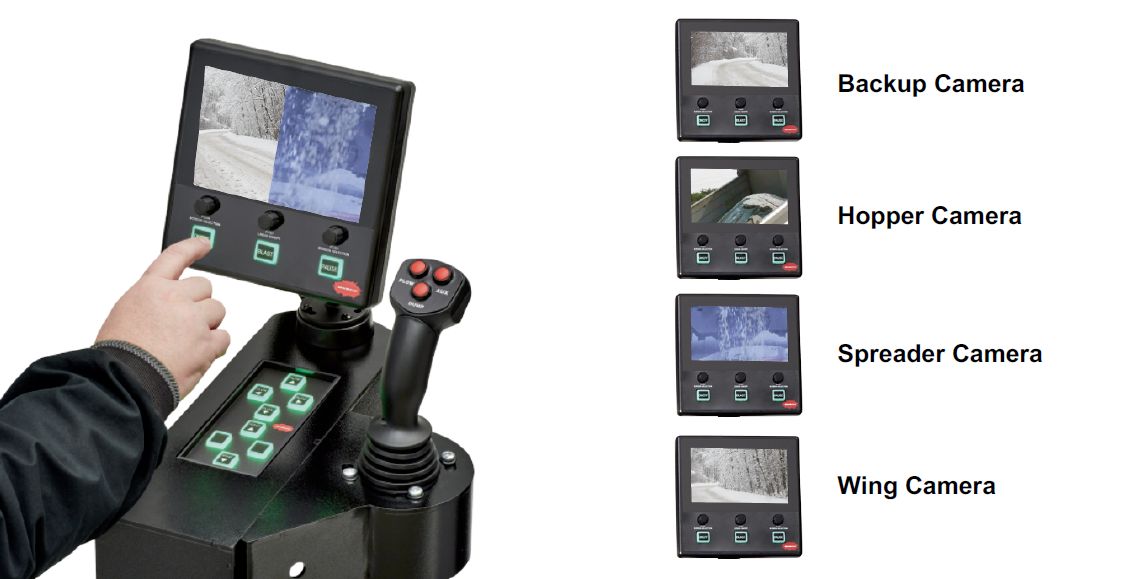

connect, view, and record: 4 cameras to monitor your vehicle



VIDEO PLAYBACK CAPABILITIES
  • SYSTEM SETUP - Preloaded training videos guide personnel on how to setup and calibrate the Omni-System Plus.
  • VIDEO CAPABILITIES - Shorten the learning curve for new operations with preloaded onboarding videos in the controller to be viewed in cab.

Drive-By download Capability
  • Integrated with Wi-Fi connectivity

New Control Pannel
  • New rigid construction better protects electrical hardware

Larger 7" Touchscreen
  • Vivid, easy-to-read capacitive touchscreen

Enhanced Electrical
  • Improved operator performance and processing capability

Internal GPS Antenna
  • Prevents operators from disconnecting GPS tracking

Remote Diagnostics
  • Remotely connect to Muncie Power for setup and diagnostic assistance

INTUITIVE CONTROL SETUP
  • Turnkey ready system is an ease to setup and operate

Cartridge Valve Design
  • Premium solution for hydraulic circuits: reduces rear hose connections for simpler install, easier to service, and includes flow sharing to keep all functions operating

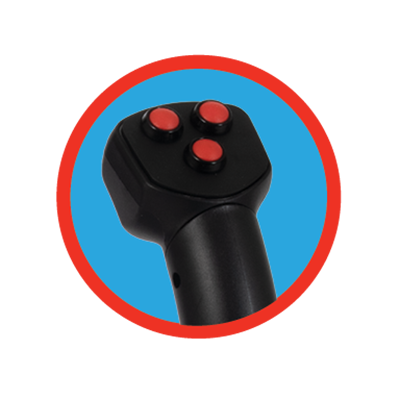

CONTROL OPTIONS
  • Joysticks - Multiple joystick configurations available for optimum cylinder control
Brochure
Installation Instructions
  • Omni-System and Omni-System Plus Installation Manual
    IN20-09
  • Omni-System Plus Operation and Configuration Manual
    IN20-03
  • New Omni-System™ Plus snow and ice control solution
    Breanna Daugherty – Marketing Communications Specialist
  • Revolutionary control with the Omni-System™ Plus Controller
    Breanna Daugherty – Marketing Communications Specialist
  • Snow & Ice Division helps keep New York City bridges clear
    Kevin Woehler – Group Manager - Technology Solutions Group

HYDRAULIC PRESSURE SETTINGS

  Function   Designation   Default PSI   Range - PSI   Adjusted
  Main Relief   TS3   2200   1500-3000   Electrically
  Clipper Relief   RV2   1600   300-3500   Mechanically
  Boost   RV1   200   0-500   Mechanically
  Spreader   RV3   1600   300-3500   Mechanically
  Plow Up   RV5   2000   300-3500   Mechanically
  Plow Down     TS2   600   0-1000   Electrically
  Hoist Up   RV4   2500   300-3500   Mechanically
  Hoist Down   TS1   600   0-1000   Electrically





  Function   Max Flow Rates   Differential PSI
  Inlet Flow   50 GPM   200
  Plow Up   15 GPM   200
  Plow Down   23 GPM   200
  Plow Angle   23 GPM   200
  Hoist Up   32 GPM   200
  Hoist Down   32 GPM   200
  Spinner   15 GPM   200
  Auger   15 GPM   200
