Bulk Transport

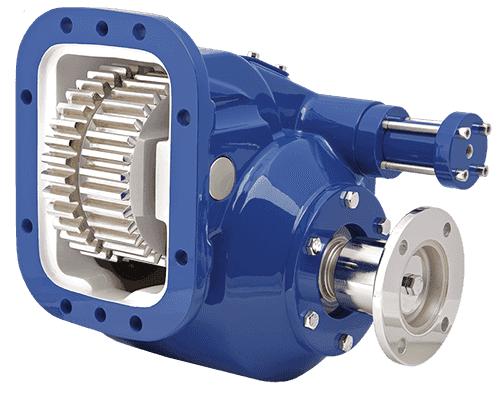

  • 82 Series Power Take-Off

    Built for high-torque and heavy-duty requirements, the 82 Series PTO features a lever or air shift cast iron housing and a single or dual optional hydraulic pump mount.

    Max Torque

    500 lbs.ft.

    Max HP (@1000 RPM)

    95 HP

    Weight

    85 lbs.

  • Optimum W Series

    The Optimum W Series gear pumps/motors offer premier performance for a wide variety of applications across several industries. Featuring the innovative OPTI-Grip® technology, the Optimum W Series exemplifies strength, endurance and rigidity making for long lasting units even in the most extreme conditions. The W Series is the smallest range of the Optimum group, providing 8 displacements to cover low flow, higher pressure requirements.

    Displacement (Cu.In./Rev)

    1.45 - 4.87

    GPM (@1000 RPM)*

    6.3 - 25.4

    Max Pressure

    4,350 PSI

    *Flow rates are theoretical.

  • Optimum X Series

    The Optimum X Series gear pumps/motors offer premier performance for a wide variety of applications across several industries. Featuring the innovative OPTI-Grip® technology, the Optimum X Series exemplifies strength, endurance, and rigidity making for long lasting units even in the most extreme conditions. The X Series is the middle range of the Optimum group, providing nine displacements to cover light to heavy flow and pressure requirements.

    Displacement (Cu.In./Rev)

    3.18 - 8.43

    GPM (@1000 RPM)*

    13.8 - 36.5

    Max Pressure

    4,350 PSI

    *Flow rates are theoretical.

  • PK Series Gear Pump

    The PK Series is designed to meet the application needs of either a pump or a motor with displacements between 4 GPM and 17 GPM at 1000 RPM.

    Displacement (Cu.In./Rev)

    .98 - 3.94

    GPM (@1000 RPM)*

    4.2 - 17.1

    Max Pressure

    3,000 PSI

    *Flow rates are theoretical.

  • PL Series Gear Pump

    The PL Series is designed to meet the application needs of either a pump or a motor with displacements between 14 GPM and 30 GPM at 1000 RPM.

    Displacement (Cu.In./Rev)

    3.18 - 7.01

    GPM (@1000 RPM)*

    13.8 - 30.3

    Max Pressure

    3,000 PSI

    *Flow rates are theoretical.

  • SH Series Power Take-Off

    Created to fill the gap between the TG and 82 Series, the SH Series is an air shift only power take-off designed for high torque applications. The SH Series is an easy to mount PTO with an integral air shift design and high torque capacity.

    Max Torque

    400 lbs.ft.

    Max HP (@1000 RPM)

    76 HP

    Weight

    35 lbs.

  • Steel Box Reservoirs

    Muncie steel box reservoirs are offered in a large variety of sizes from compact to midsize models, providing a wide range of product diversity. Our reservoirs feature multiple return ports and are designed for easy installation by utilizing welded mounting rails with punched holes.

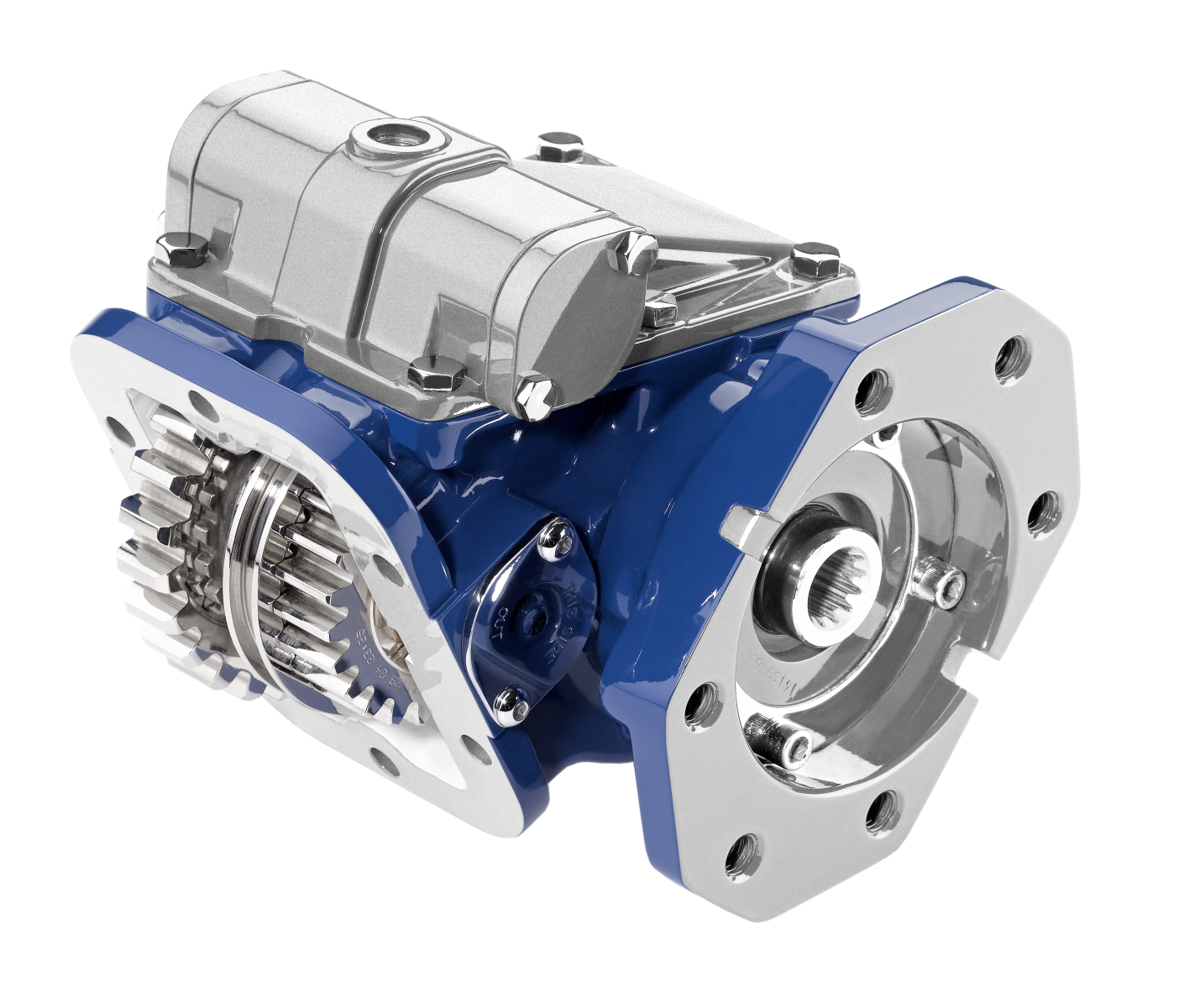

  • TG Series Power Take-Off

    As the most versatile and widely used double gear type power take-off in the industry, the TG Series is available with 10 speed ratios, 19 shift types, 19 output shaft options and input gears for all popular transmissions.

    Max Torque

    285 lbs.ft.

    Max HP (@1000 RPM)

    54 HP

    Weight

    22 lbs.

  • V130 Directional Control Valve

    The V130 is constructed with high grade iron castings and nickel-plated spools for use in high pressure applications and can be configured with many different spool, control, and positioner options. The V130 is designed for flow rates up to 55 GPM (208 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service & support.

    Flow Capacity (Nominal)

    34 GPM (130 LPM)

    Flow Capacity (Maximum)

    55 GPM (208 LPM)

    Max Pressure (1-3 Sections)

    5,440 PSI (375 BAR)

    Max Pressure (4-6 Sections)

    5,075 PSI (350 BAR)

    Max Pressure (7-10 Sections)

    4,710 PSI (325 BAR)
