MESP 3016 / 3017 Electronic Spreader System
Save Time, Save Salt, Save Money

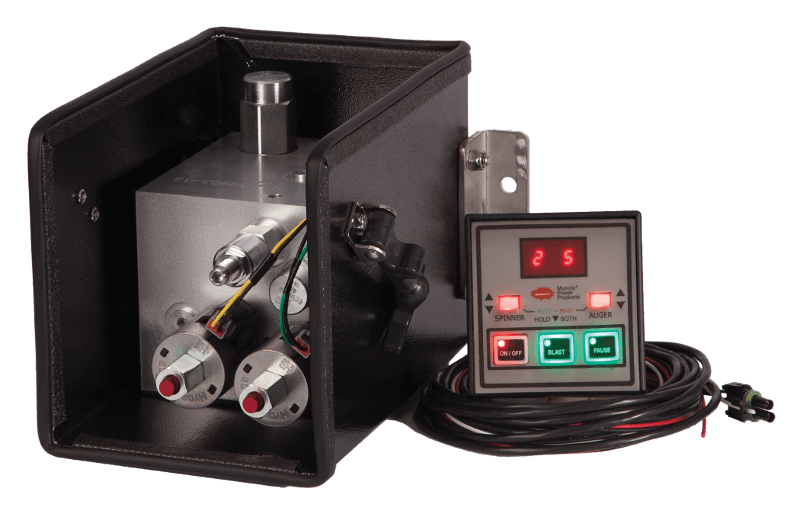

The Muncie MESP 3016 / 3017 Electronic Spreader Package is the latest spreader control system for snow and ice control vehicles. It is easy to install, setup and is perfect for new or retrofit installations. The system is suitable for all spreader setups: Tailgate, drop-in V boxes, roll gates, and Muni bodies are all compatible. The hydraulics are offered for use with either open or closed center hydraulic systems. The controller uses durable soft toggles and illuminated soft-touch buttons to adjust flow rates for spinner flows up to 8 GPM and auger flows up to 17 GPM. The controller can operate in either manual or auto mode.
The MESP 3016 / 3017 enclosure is built with Heavy Duty 11 gauge powder coated steel. Deutsch and Weather Pack connectors are used to waterproof the electrical connections and prevent failure due to corrosion.
The controller is easy to operate and setup with nine programmable settings of operation. Ground speed controls let the driver focus on driving.
- Easy to use, set-up, & install
- Optional adjustable floor mounting system
- Superfulous information to end user
- Pair with stack valve to control cylinder functionality - works with air, cable, or solenoid shift stack valves
- Maximum operator convenience - automatic and manual mode
- Open loop operation - no feedback sensor required
- Compatible with gear or piston pumps
- Compatible with all spreaders: tailgate, drop-in V boxes, roll gates, and Muni bodies
- Hydraulics installed outside of the cab to reduce heat, noise, and fumes
- Five Setup Adjustments:
- Auger minimum / Auger maximum
- Spinner minimum / Spinner maximum
- Ground speed
- Spinner Flow - 8 GPM
- Auger Flow 17 GPM
MESP 3016GASM Manifold Installation and Owners ManualIN13-05VIEW
MESP 300A Controller Installation and Owner's ManualIN13-06VIEW
- Spinner Flow - 8 GPM
- Auger Flow - 17 GPM
- Adjustable Relief -3,000 PSI Max
- Adjustable Spreader Relief -1,500 PSI
- Max Inlet Flow - 40 GPM
The Muncie Power Products Snow & Ice System (the “System”) is warranted against any defect in material and workmanship which existed at the time of sale by Muncie Power Products, according to the following provisions, subject to the requirements that the System, and component parts thereof, must be used only in accordance with catalogue and package instructions.
With the exception of specific component parts of the System that may have a longer or more extensive warranty, the System, and the components thereof, is warranted for a period of one year from the date of sale. If during the warranty period the System, or a component thereof, fails to operate to Muncie Power Products' specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie Power Products, the defective part will be repaired or replaced, at Muncie Power Products' election, at no charge, if the defective part is returned to Muncie Power Products with transportation prepaid.
WARNING: The above warranty shall terminate if any alterations or repairs are made to the System, or a component thereof, other than alterations or repairs made by Muncie Power Products, or if the System is used on any equipment other than the equipment upon which it is first installed.
The foregoing warranty is in lieu of, and Muncie Power Products expressly disclaims, all other obligations and liabilities, including negligence and all warranties of merchantability and suitability, expressed or implied. The foregoing warranty states Muncie Power Products' entire and exclusive liability and buyer's exclusive remedy for any claim of damages in connection with the sale, repair or replacement of the System or its component parts, their design, installation or operation. Muncie Power Products will in no event be liable for any direct, indirect, special, incidental or consequential damages whatsoever, and our liability under no circumstances will exceed the contract price for the goods for which liability is claimed
