17 Series Directional Control Valves

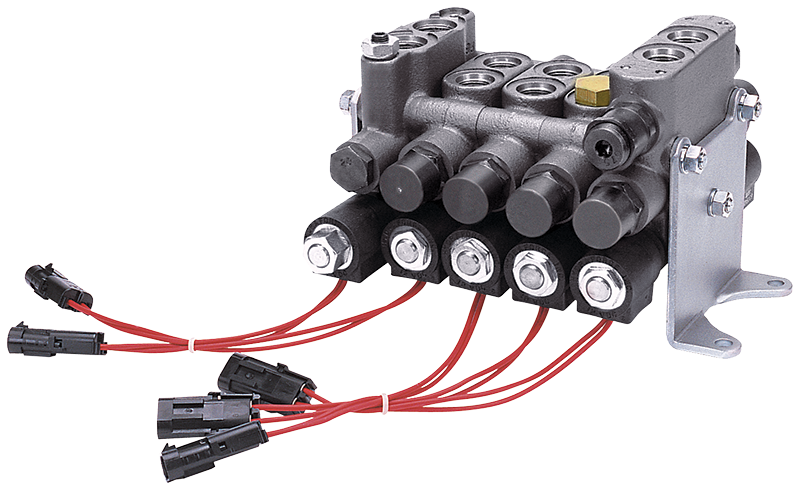

Muncie’s 17 Series solenoid operated control valves provide flexibility you have never had before. Mount the valve assembly anywhere available on the chassis and locate your controls elsewhere in a convenient location. The sectional parallel design allows numerous combinations to be stacked together. Various work port and spool options are available to meet all your application needs.

  • Stackable design allows for customizing the assembly to your specific needs.
  • Compact size and lightweight design.
  • Precision machined spools are hard chrome plated for maximum life and corrosion resistance.
  • Diamond lapped bores.
  • 100% preassembled and pretested before shipping.
  • Parallel circuit design permits all spools to be operated independently or simultaneously with the lightest load receiving priority.
Brochure
  • 17 Series Control Valves
    MP98-05
    VIEW
Installation Instructions
  • Assembly Instructions for 17 Series Hydraulic Valves
    IN01-06
    VIEW
TECHNICAL SPECIFICATIONS
 Design Type:  Sectional
 Circuit Types:  Parallel / Closed Center with Inlet Unloader
 Flow Capacity:  Nominal: 12 GPM (45 LPM), Maximum: 18 GPM (68 LPM)
 MAX Pressure:  3500 PSI (242 BAR)
 MAX Tank Pressure:  150 PSI (10 BAR)
 Filtration:  10 Micron
 Spool Force  Pilot Operated 300 PSI (20 BAR) Minimum
 Oil Temperature Range:  -20 to 200 °F (-29 to 93 °C)
 Seal Type:  Buna-N
 Relief Valve:  Pilot Operated Adjustable from 1000 to 3500 PSI (69 to 242 Bar) (preset at 2000 PSI (138 Bar))
 Coil Information:  Continuous Duty Rating 1.25 Amps for Each Energized Coil (9.8 Ohms Resistance @ 20°C, 12VDC), 8.50” Weatherpak Leads
