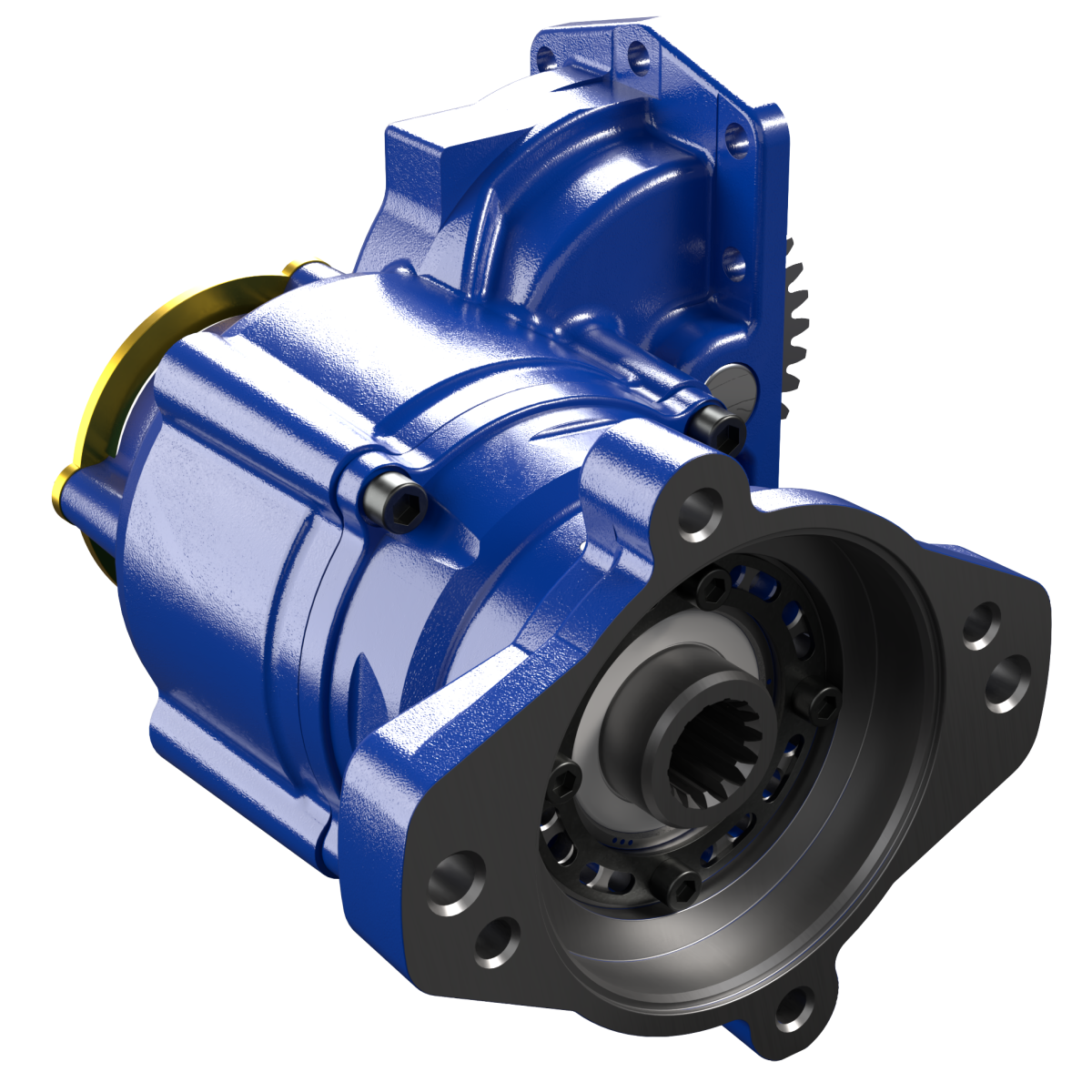

A50 Series Power Take-Off
The A50 Series is your heavy-duty, constant drive PTO solution for Allison 3000 and 4000 Series transmissions. Engineered to use the transmission’s full available torque capacity, it offers a wide variety of available ratios to power large variable displacement hydraulic pumps, refuse pumps, and other high torque-driven equipment.
Target APPLICATIONS
- Refuse trucks
- Cranes
- Snow and ice
- Concrete mixers
- Heavy-duty torque ratings utilize the full capacity of the transmission
- Low-profile housing for better clearance on install
- Functional alternative to front engine PTO (FEPTO) applications
- Compatible with EX Drive
| ALLISON 3000 SERIES SIDE/SIDE |
ALLISON 3000 SERIES SIDE/TOP | ALLISON 4000 SERIES | ||||
|---|---|---|---|---|---|---|
|
SPEED RATIO |
OUTPUT SPEED (% ENGINE SPEED |
TORQUE RATING CONTINUOUS (LBS.FT) |
OUTPUT SPEED (% ENGINE SPEED | TORQUE RATING CONTINUOUS (LBS.FT) | OUTPUT SPEED (% ENGINE SPEED | TORQUE RATING CONTINUOUS (LBS.FT) |
| 05 | 85% | 571 | 104% | 646 | 121% | 565 |
|
06 |
91% | 535 | 111% | 605 | 129% | 530 |
|
07 |
97% | 502 | 118% | 568 | 138% | 497 |
|
08 |
103% | 471 | 126% | 533 | 147% | 467 |
|
09 |
117% | 416 | 142% | 471 | 166% | 412 |
|
10 |
132% | 368 | 161% | 416 | 188% | 364 |
|
11 |
149% | 325 | 182% | 368 | 213% | 322 |
|
12 |
159% | 306 | 194% | 346 | 226% | 303 |
|
13 |
169% | 287 | 206% | 325 | 241% | 284 |
The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year (two years on Allison World Transmission PTOs) after date of original installation any defective part or parts or any product not meeting the specifications.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.
If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.
