CD05 Series Power Take-Off

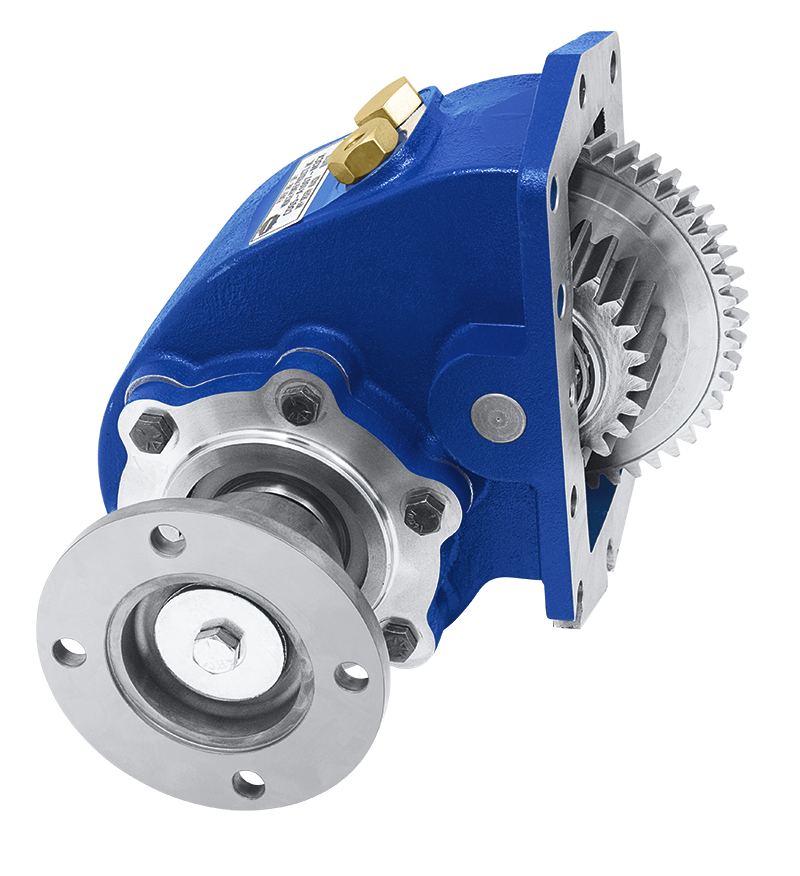

The CD05 Series Power Take-Off is a constant drive (non-shiftable) PTO designed to fit tight mount applications like the Peterbilt 320, Autocar LCF and the Hino 338 chassis.  The CD05 uses the same components as the CD10, but is approximately 15% smaller without the loss of torque or horsepower.  With torque ratings up to 360 Ft. Lb., the CD05 PTO can provide power and versatility for the most demanding applications.

  • Up to 360 lbs.ft. torque capacity and 68 H.P. @1000 RPM: Power to drive high volume pumps
  • Two standard output shafts in both keyed and flange types: Versatility for remote pump drives
  • Five speed ratios
  • Four assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
  • Standard pressure lubrication: No extra cost
Brochure
  • CD05 Series Spec Brochure
    MP15-26
    VIEW
Installation Instructions
  • Installation Instructions/Owners Manual for Allison World Trans PTOs CD05
    IN95-02
    VIEW
Service Parts Manual
  • CD05 Parts List and Service Manual
    SP11-02
    VIEW

PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio
Intermittent HP@1000 RPM
Intermittent Torque lbs.ft.
Continuous Torque lbs.ft.
Intermittent (kw)@1000 RPM
Intermittent Torque (NM)
Continuous Torque (NM)
07 68 360 252 (51) (488) (342)
08 64 336 235 (48) (456) (319)
10 59 310 217 (44) (420) (294)
12 50 260 182 (37) (352) (246)
15 43 225 158 (32) (305) (214)

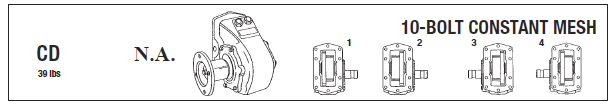

ASSEMBLY ARRANGEMENTS



DIMENSIONAL DRAWINGS
