CD40 Series Power Take-Off

The Muncie CD40 Series PTO is designed for maximum PTO output torque for live engine driven equipment. The CD40 shares the same design technology as the shift-able CS41, including finish ground gearing and oversized bearings and shafts to provide maximum power capability.

The CD40 Series is rated to 600 lb-ft. and is available with 5 output shaft options including fully rotatable hydraulic pump adapters. It is offered in two speed ratios and two housing arrangements to provide shaft locations either high or low for either side of the transmission.

  • Precision ground gears: High torque capacity with quiet operation
  • Extra large bearings & components: High torque and durability
  • 1410 Series remote mount output shaft: For remote pump drives
  • S.A.E. "B" and "C" and DIN 5462 direct mount options: Fits most popular pumps requiring high power input
  • Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
  • Two assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
  • Standard pressue lubrication: No extra cost
Brochure
  • CD40 Series Spec Brochure
    MP15-20
    VIEW
Installation Instructions
  • INSTALLATION INSTRUCTIONS/OWNERS MANUAL FOR CD40
    IN95-02
    VIEW
Service Parts Manual
  • CD40 Series Service Parts Manual
    SP06-02
    VIEW
PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio
Intermittent HP@1000 RPM
Intermittent Torque lbs.ft.
Continuous Torque lbs.ft.
Intermittent (kw)@1000 RPM
Intermittent Torque (NM)
Continuous Torque (NM)
07 114 600 420 (85) (813) (569)

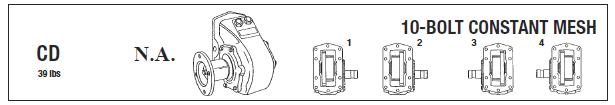

ASSEMBLY ARRANGEMENTS

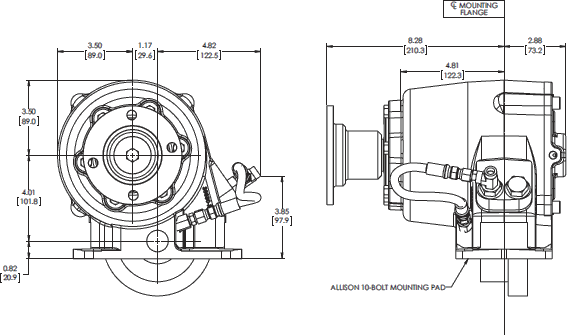

DIMENSIONAL DRAWINGS



The Muncie CD40 Series Power Take-Offs are warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within two years after date of original installation any defective part or parts or any product not meeting the specifications.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.

If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.
