CS40/CS41 Series Power Take-Off

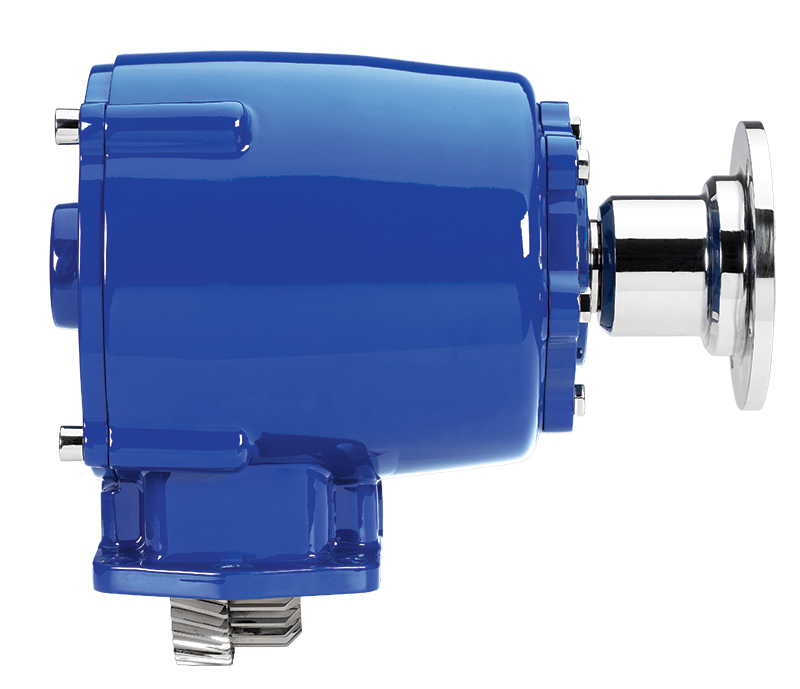

The CS40/41 Series Power Take-Off is an extra heavy duty, Clutch Shift PTO designed for Allison World® and Caterpillar automatic transmissions. The CS40/41 Series PTO is engaged by means of a solenoid activated, wet clutch pack and features a remotely mounted solenoid for a more compact installation. The CS40/41 is rated to 600 lbs.ft. torque/intermittent and 420 lbs.ft. torque/continuous. It also provides a max output speed of 4000 RPMs on fire pump applications.

  • Precision ground gears: High torque capacity with quiet operation
  • Extra large bearings & components: High torque and durability
  • 1410 series remote mount output shaft: For remote pump drives
  • S.A.E. "C" and DIN 5462 direct mount options: Fits most popular pumps requiring high power input
  • Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
  • Two assembly arrangements: Allows the PTO to be mounted shaft high or low on either side of the transmission
  • Standard pressure lubrication: No extra cost
  • Max output speed of 4000 RPMs on fire pump applications
Brochure
  • CS41 Series Flyer
    MP05-03
    VIEW
  • CS and CD Series PTOs Brochure
    MP98-04
    VIEW
  • CS40/41 Series Spec Brochure
    MP15-23
    VIEW
Installation Instructions
  • INSTALLATION INSTRUCTIONS/OWNERS MANUAL FOR CS40 and CS41
    IN95-02
    VIEW
Service Parts Manual
  • CS41 Series Service Parts Manual For Date Codes Prior to 10/2013
    SP06-01
    VIEW
  • CS40/41 Series PTO Service Parts Manual
    SP14-03
    VIEW
PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio
Intermittent HP@1000 RPM
Intermittent Torque lbs.ft.
Continuous Torque lbs.ft.
Intermittent (kw)@1000 RPM
Intermittent Torque (NM)
Continuous Torque (NM)
07 114 600 420 (85) (813) (569)
10 103 545 382 (76) (739) (517)
12 93 490 343 (70) (664) (465)

ASSEMBLY ARRANGEMENTS

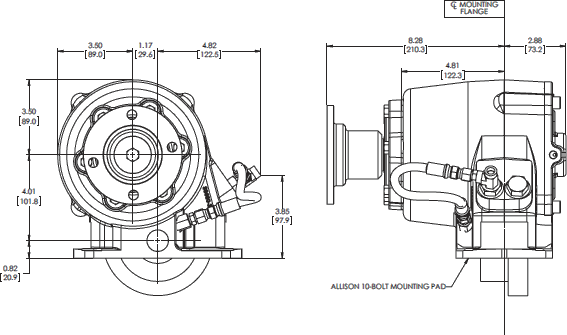

DIMENSIONAL DRAWINGS


The Muncie CS40 and CS41 Series Power Take-Offs are warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within two years after date of original installation any defective part or parts or any product not meeting the specifications.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.

If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.

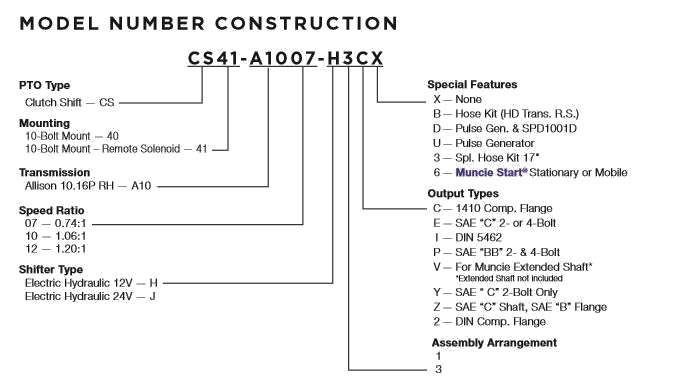

MODEL NUMBER CONSTRUCTION
