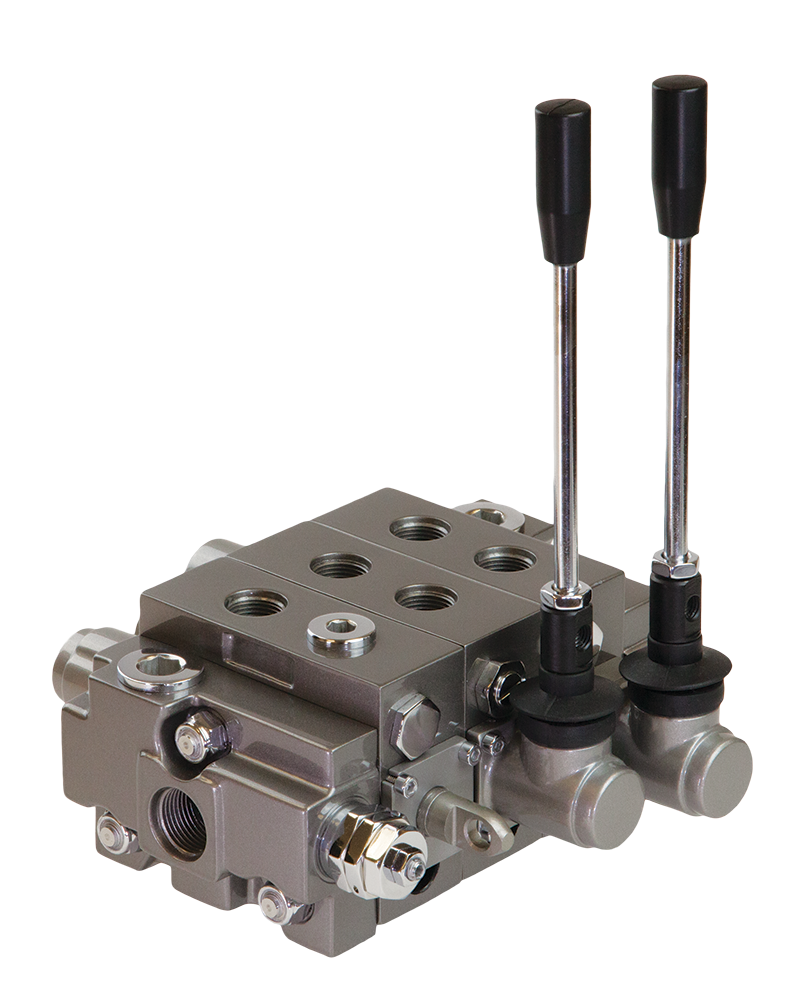

V080 Directional Control Valve

Take control of your hydraulic system with Muncie Power Products’ V080 Series directional control valve. The V080 Series is constructed with high grade iron castings and nickel-plated spools for use in high pressure applications and can be configured with many different spool, control and positioner options. The V080 is designed for mid-range flow capacities, and offers superior performance in a compact package.

Muncie Power Products takes pride in supplying the work truck industry with the highest quality products and outstanding service & support. The V080 can be configured with custom options and controls, so if you don’t see what you need here, call today and let us put you in control of your hydraulic systems.

  • High grade iron castings allow for high pressure capabilities for the most extreme applications
  • Nickel plated spools resist wear allowing for long life under high pressure conditions
  • Tight tolerances and precision machining keep internal, spool leakages low
  • Internal oil core design allows for higher flow rates and low pressure drops, all in a smaller package
  • High pressure carry over (power beyond) and closed center options available
  • Load-checks are standard on all work sections
  • Work port relief valves, anti-cavitation valves, combination R.V.’s/anti-cav valves and pilot operated check valves (lock valves) are available for your individual work section protection needs.
  • Inlet relief valve is standard
  • Parallel, series, tandem and metered spools available (lead times apply to non-standard options)
  • Ability to combine valve families with custom mid-sections.
  • Very versatile design can be configured with many different spool, control, positioner and accessory options
  • Work sections are pre-assembled and 100% test prior to shipping
Brochure
  • V080 Directional Control Valve Spec Brochure
    MP15-01
    VIEW
Installation Instructions
  • V080 Valve Assembly Instructions
    R3245-01
    VIEW
Service Parts Manual
  • V080 Back-Cap & Control Kit Service Parts
    V080SP
    VIEW
  • V080 Directional Control Valve Service Parts
    SP14-01
    VIEW
TECHNICAL SPECIFICATIONS
 Design Type:  Sectional
 MAX Work Sections:  10
 Circuit Types:  Open center parallel, series, tandem and closed center
 Flow Capacity:  Nominal: 21GPM (80LPM), Maximum: 30GPM (114LPM)
 MAX Pressure:  1 - 3 Sections: 5075 PSI (350 BAR)
 4 - 6 Sections: 4650 PSI (320 BAR)
 7 - 10 Sections: 4350 PSI (300 BAR)
 MAX Back Pressure:  365 PSI (25 BAR)
 Recommended Filtration:  20/18/15 (ISO 4406:1999)
 Oil Viscosity Range:  60 to 1950 SUS (10 to 400 cSt)
 Oil Temperature Range:  -20 to 180 °F (-29 to 82 °C)
 Recommended Oil Temperature:  85 to 140 °F (30 to 60 °C)
 Approx. Weights (std. options):  Inlet: 5.1 lbs (2.3 Kg)
 Outlet: 4.2 lbs (1.9Kg)
 Work Section: 8.6 lbs (3.9Kg)

The Muncie V080 Directional Control Valve is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject to the requirements that the Valve must be used only in accordance with catalogue and package instructions. The Valve is warranted for a period of one year from date of installation. If during the warranty period the Valve fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.

Warning. The above warranty shall terminate if any alterations or repairs are made to the Valve other than at a Service Center owned by Muncie, or if the Valve is used upon any equipment other than the equipment upon which it is first installed.

THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESSED OR IMPLIED AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.

MODEL NUMBER CONSTRUCTION (for additional sections see MP15-01)
