REFERENCE ONLY - This product is no longer available. Replace with Omni System™ or Omni System™ Plus.
Muncie's Advantage+ snow and ice control system combines two new unique technologies to increase reliability and revolutionize the method in which snow and ice removal fleets are operated and maintained.
Our Wi-Fi powered real-time support link enables engineers to remotely view hydraulic system information and electronically adjust valves and system parameters to keep the truck on the road.
+ Real Time Support |
|
+ Cost Savings |
Do More with Less: In addition to spreader operations, the Advantage+ controller can be used for Anti-Icing by simply toggling a button on one of the operating screens. |
+ Better Technology |
Sensor and Switches: The controller is compatible with a variety of switches and sensors that can be used as system inputs. These include body up switches, hot oil, low oil, cold oil, filter bypass, and Air & Road Temperature Sensors. Status Indication: Critical system information is reported to the operator via the status bar. The system automatically detects and reports faults such as hot oil, low oil, cold oil, body up, open circuits, and more. |
+ Data Logging |
|
+ Ergonomic Controls |

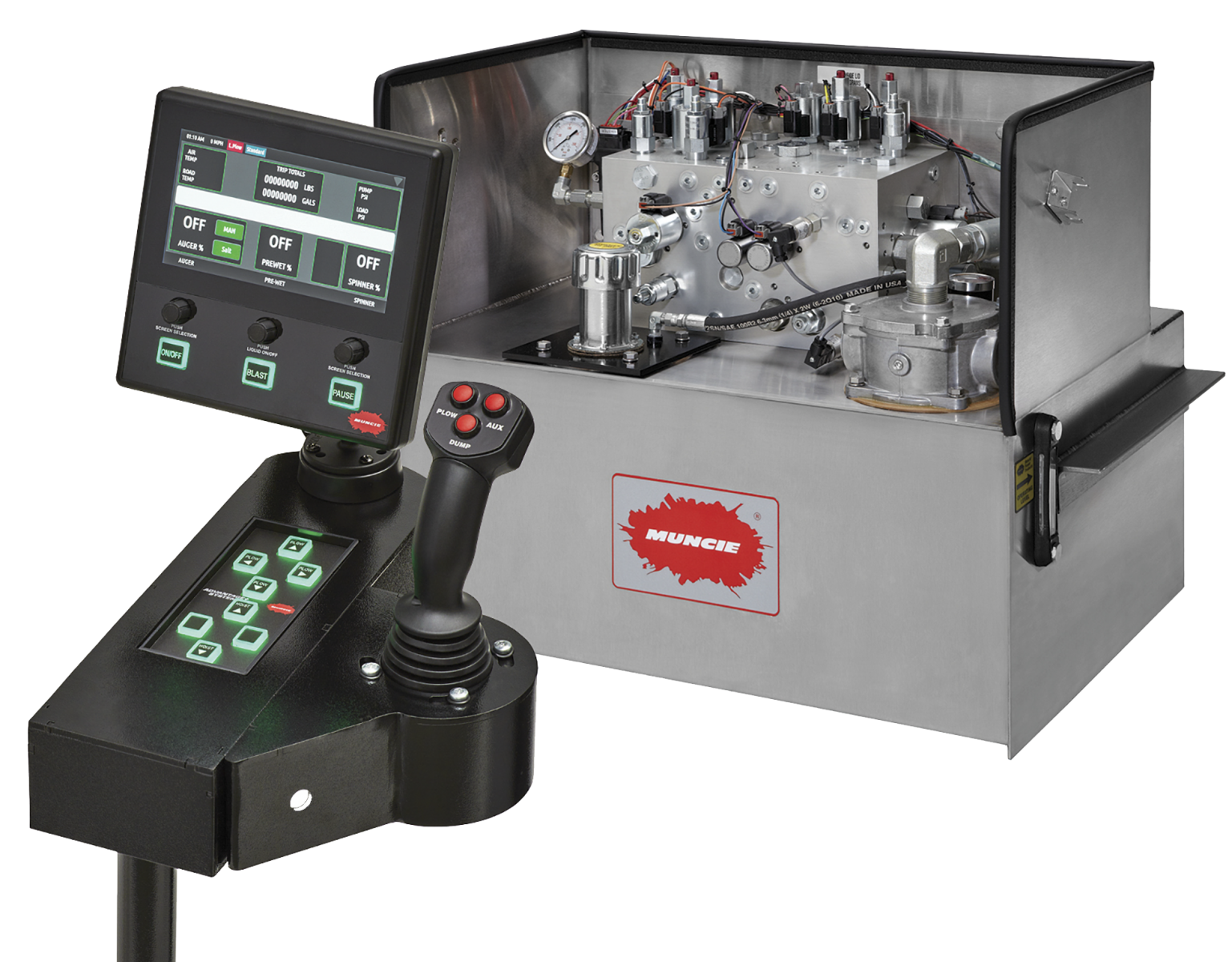

Easy to Operate Controls: The Advantage+ controls have been designed to be intuitive and easy for the operator. The control panel uses a vivid color touch screen that creates easily readable displays. System settings are easy to understand and adjustable from the touch screen. Ergonomic Mounting Solution: The Advantage+ Control Solution occupies very little space within the cab. Therefore, a driver can position their controls accordingly, and still have room to shift and access controls located on the dash. In addition, the controls are mounted to the seat, not the floor. This allows the controls to ride with the driver when traveling over rough terrain.Backlighting: The backlighting of the touchscreen and buttons are adjustable to the operator. This insures that the controls are non-intrusive at night, and easy to see during extreme sunlight. |
+ Rugged Design |
Rugged Tank Enclosures: Stainless or Powder Coated Enclosures Compact Design: One centralized location on the truck houses the hydraulic valves, return line filter, clean out, electrical modules, and more. This makes servicing the system simple and easy. |
-
Installation InstructionsAdvantage+ Spreader Package Installation InstructionsIN18-01VIEW
HYDRAULIC PRESSURE SETTINGS
Function | Designation | Default PSI | Range - PSI | Adjusted |
Main Relief | TS3 | 2200 | 1500-3000 | Electrically |
Clipper Relief | RV2 | 1600 | 300-3500 | Mechanically |
Boost | RV1 | 200 | 0-500 | Mechanically |
Spreader | RV3 | 1600 | 300-3500 | Mechanically |
Plow Up | RV5 | 2000 | 300-3500 | Mechanically |
Plow Down | TS2 | 600 | 0-1000 | Electrically |
Hoist Up | RV4 | 2500 | 300-3500 | Mechanically |
Hoist Down | TS1 | 600 | 0-1000 | Electrically |
HYDRAULIC SPECIFICATIONS
Function | Max Flow Rates | Differential PSI |
Inlet Flow | 50 GPM | 200 |
Plow Up | 15 GPM | 200 |
Plow Down | 23 GPM | 200 |
Plow Angle | 23 GPM | 200 |
Hoist Up | 32 GPM | 200 |
Hoist Down | 32 GPM | 200 |
Spinner | 15 GPM | 200 |
Auger | 15 GPM | 200 |
The Muncie Power Products Snow & Ice System (the “System”) is warranted against any defect in material and workmanship which existed at the time of sale by Muncie Power Products, according to the following provisions, subject to the requirements that the System, and component parts thereof, must be used only in accordance with catalogue and package instructions.
With the exception of specific component parts of the System that may have a longer or more extensive warranty, the System, and the components thereof, is warranted for a period of one year from the date of sale. If during the warranty period the System, or a component thereof, fails to operate to Muncie Power Products' specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie Power Products, the defective part will be repaired or replaced, at Muncie Power Products' election, at no charge, if the defective part is returned to Muncie Power Products with transportation prepaid.
WARNING: The above warranty shall terminate if any alterations or repairs are made to the System, or a component thereof, other than alterations or repairs made by Muncie Power Products, or if the System is used on any equipment other than the equipment upon which it is first installed.
The foregoing warranty is in lieu of, and Muncie Power Products expressly disclaims, all other obligations and liabilities, including negligence and all warranties of merchantability and suitability, expressed or implied. The foregoing warranty states Muncie Power Products' entire and exclusive liability and buyer's exclusive remedy for any claim of damages in connection with the sale, repair or replacement of the System or its component parts, their design, installation or operation. Muncie Power Products will in no event be liable for any direct, indirect, special, incidental or consequential damages whatsoever, and our liability under no circumstances will exceed the contract price for the goods for which liability is claimed
