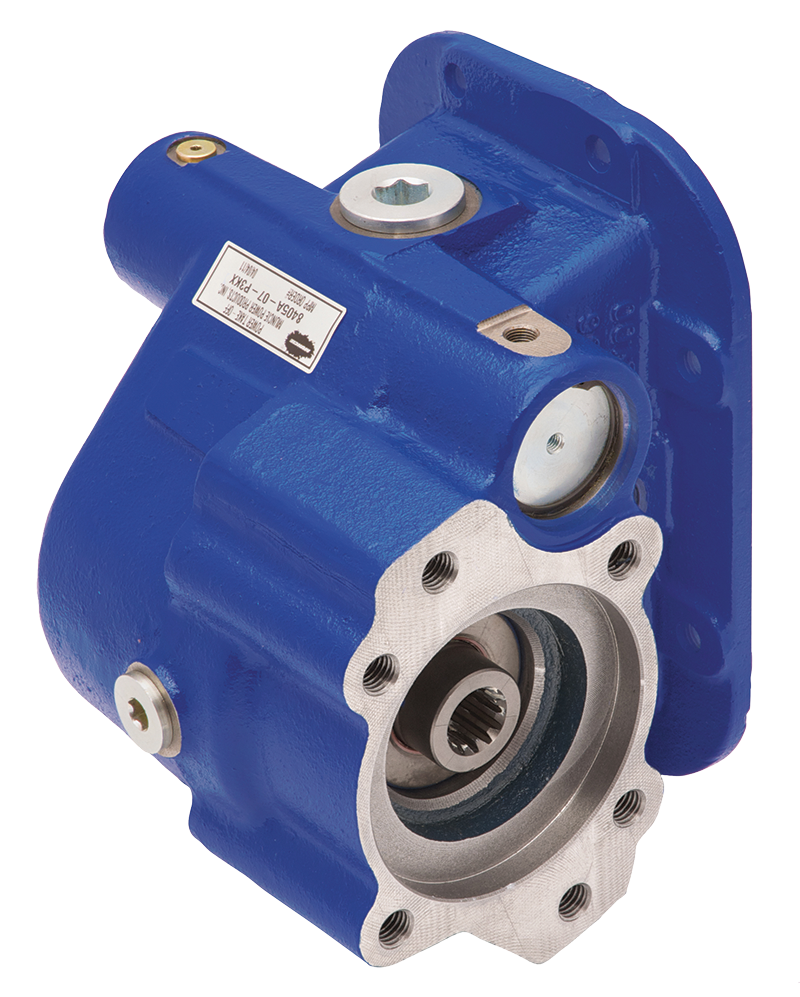

8405/6A Series Power Take-Off

Muncie Power Products’ 8405/6A Series PTO uses an 8-bolt mounting for Eaton, Meritor and Mack transmission openings. With a rigid structure and 225 Ft. Lb. of intermittent torque, this powerhouse is sure to provide all of your application needs

  • Ductile iron housing
  • Integral 8-bolt mounting pad
  • SAE “B” or SAE “B-B”, 2- or 4-bolt pump mounting flange and 1 ¼” optional shaft
  • Integral air shift
  • Drain port
  • Inspection port for backlash adjustment
  • 3 popular speed ratios equivalent to the TG8S-U6807, 08 and 09 PTOs
  • Intermittent torque rating of 225 Ft. Lb.
Brochure
  • 8405/6A Series PTO with 8-Bolt Mount Brochure
    MP01-10
    VIEW
Installation Instructions
  • 8405/6A Disassembly-Reassembly
    IN10-13
    VIEW
Service Parts Manual
  • 8405/6A Service Manual
    SP10-02
    VIEW
PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio
Intermittent HP@1000 RPM
Intermittent Torque lbs.ft.
Continuous Torque lbs.ft.
Intermittent (kw)@1000 RPM
Intermittent Torque (NM)
Continuous Torque (NM)
07 44 230 161 (33) (312) (218)
08 44 230 161 (33) (312) (218)
09 39 205 144 (29) (278) (195)


DIMENSIONAL DRAWINGS



The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.

If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.
