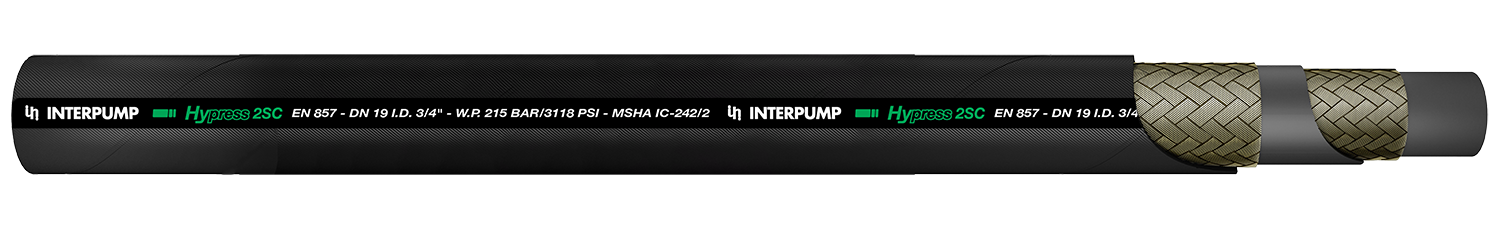

Interpump Hypress 2SC BFEM02K Hose
APPLICATIONS
- Agriculture
- Utility Crane
- Forklift
- Construction
- Mobile Hydraulics
- Industrial Hydraulics
- Marine & Offshore
- Earth Moving
TYPE APPROVAL
MSHA, ABS
APPLICABLE SPECS
Exceeds EN 857 2SC - SAE 100 R16 - ISO 11237 2SC
SPECIAL FEATURES
Compact hose with low bend radius (R16). No-Skive solution. Burst pressure exceeds EN standards. Impulse tested up to 2x EN standard.
Internal hose
Synthetic rubber, extruded whole without joints, of uniform thickness.
Reinforcement
2 high tensile steel wire braids.
Covering
Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions.
Recommended fluid
Mineral and biological oils, glycol-water based, water, lubricants.
Operating temperature
-40°F to +248°F (-40°C to +120°C)
Continuous
-40°F to +275°F (-40°C to +135°C)
Intermittent:
-40°F to +158°F (-40°C to +70°C)
Water based fluids
+32°F to +158°F (0°C to +70°C)
-
Understanding the Importance of Minimum Bend Radius in Hydraulic HosesMike Dowling – Field Sales Manager – Fluid Conveyance Products
|
SIZE |
ID* |
OD |
MAX WP | MIN BP | MIN BR | WEIGHT | FERRULE | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm. | mm. | PSI | BAR | PSI | BAR | in. | mm. | lb. ft. | kg/m | ||
| -04 | 1/4" | 6.4 | 13.3 | 5,800 | 400 | 23,200 | 1,600 | 1.97 | 50 | 0.19 | 0.28 | 001C-04 |
|
-05 |
5/16" | 8.0 | 14.8 | 5,075 | 350 | 20,300 | 1,400 | 2.17 | 55 | 0.22 | 0.33 | 001C-05 |
|
-06 |
3/8" | 9.5 | 17.1 | 4,785 | 330 | 19,140 | 1,320 | 2.56 | 65 | 0.28 | 0.42 | 001C-06 |
| -08 | 1/2" | 12.7 | 20.4 | 3,988 | 275 | 15,950 | 1,100 | 3.54 | 90 | 0.35 | 0.53 | 001C-08 |
| -10 | 5/8" | 16.0 | 23.5 | 3,625 | 250 | 14,500 | 1,000 | 3.94 | 100 | 0.42 | 0.63 | 001C-10 |
| -12 | 3/4" | 19.0 | 27.6 | 3,118 | 215 | 12,470 | 860 | 4.72 | 120 | 0.53 | 0.78 | 001C-12 |
| -16 | 1" | 25.4 | 35.8 | 2,393 | 165 | 9,570 | 660 | 5.91 | 150 | 0.79 | 1.18 | 001C-16 |
Muncie’s Hydraulic Hose and Fittings are warranted against any defect in material and workmanship, under normal use and operations, which existed at the time of sale by Muncie Power Products, according to the following provisions, subject to the requirements that the product must be used only in accordance within catalogued product specifications, applications, and performance.
The hydraulic hose and fitting product line is warranted for a period of two years from the date of sale and invoice from Muncie Power Products. If during the warranty period the Hydraulic Hose and Fitting products fails to operate to Muncie Power Products' specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie Power Products, the defective part will be replaced, at Muncie Power Products' election, at no charge, if the defective part is returned to Muncie Power Products.
WARNING: The above warranty shall terminate for any products subject to improper storage, improper installation, accident, misuse, neglect, abuse, normal wear, and any products provided as a sample or prototype.
The foregoing warranty is in lieu of all other obligations and liabilities, including negligence and all warranties of merchantability and suitability, expressed or implied, and state Muncie Power Products' entire and exclusive liability and buyer's exclusive remedy for any claim of damages in connection with the sale, repair or replacement of the above goods, their design, installation or operation. Muncie Power Products will in no event be liable for any direct, indirect, special, incidental or consequential damages whatsoever, and our liability under no circumstances will exceed the contract price for the goods for which liability is claimed.
