A20 Series Power Take-Off

Designed for Allison 3000 & 4000 Series Transmissions

The A20 Series is a 10-bolt medium-duty, clutch-shift PTO rated for up to 415 lbs.ft. torque intermittent/continuous and features various product improvements allowing for easier installation and a more durable PTO for Allison 3000 and 4000 Series transmissions.



ROTATABLE PUMP FLANGE

  • Stamped with position codes
  • 30 unique positions allows for optimal clearance
  • More flexibility when mounting pumps
  • Flange is easily adjustable without seal disturbance
  • Can be shipped loose or at a specific position code for quicker mounting

SELECT FLANGE POSITION



TARGET MARKETS

  • Class 7–8 trucks with automatic transmissions
  • Dump
  • Fire
  • Refuse
  • Utility
  • Tow & Recovery
  • Snow & Ice
  • Bulk Hauling
Crossover legacy for CS24, CS25, HS24, and MC1 PTOs below.

PTO Series
Gear
Ratio
Shift Type
Assembly
Output
Feature

A20 - xxx xx - xx - x xx xx

  • Rotatable pump flange
  • Increased clearance for easier installation
  • Shift cover allowing 360-degree rotation
  • Proven clutch pack design
  • Tapered roller bearings increasing PTO life
  • Increased output shaft diameter for  higher durability
  • Reduced leak paths
  • Maximized gear design for noise reduction
  • Single intermittent/continuous  torque rating
  • Three housing arrangements
  • Extended length PTO mounting fasteners
  • Compatible with EX Drive shaft extension



AVAILABLE WITH THE MUNCIE START®

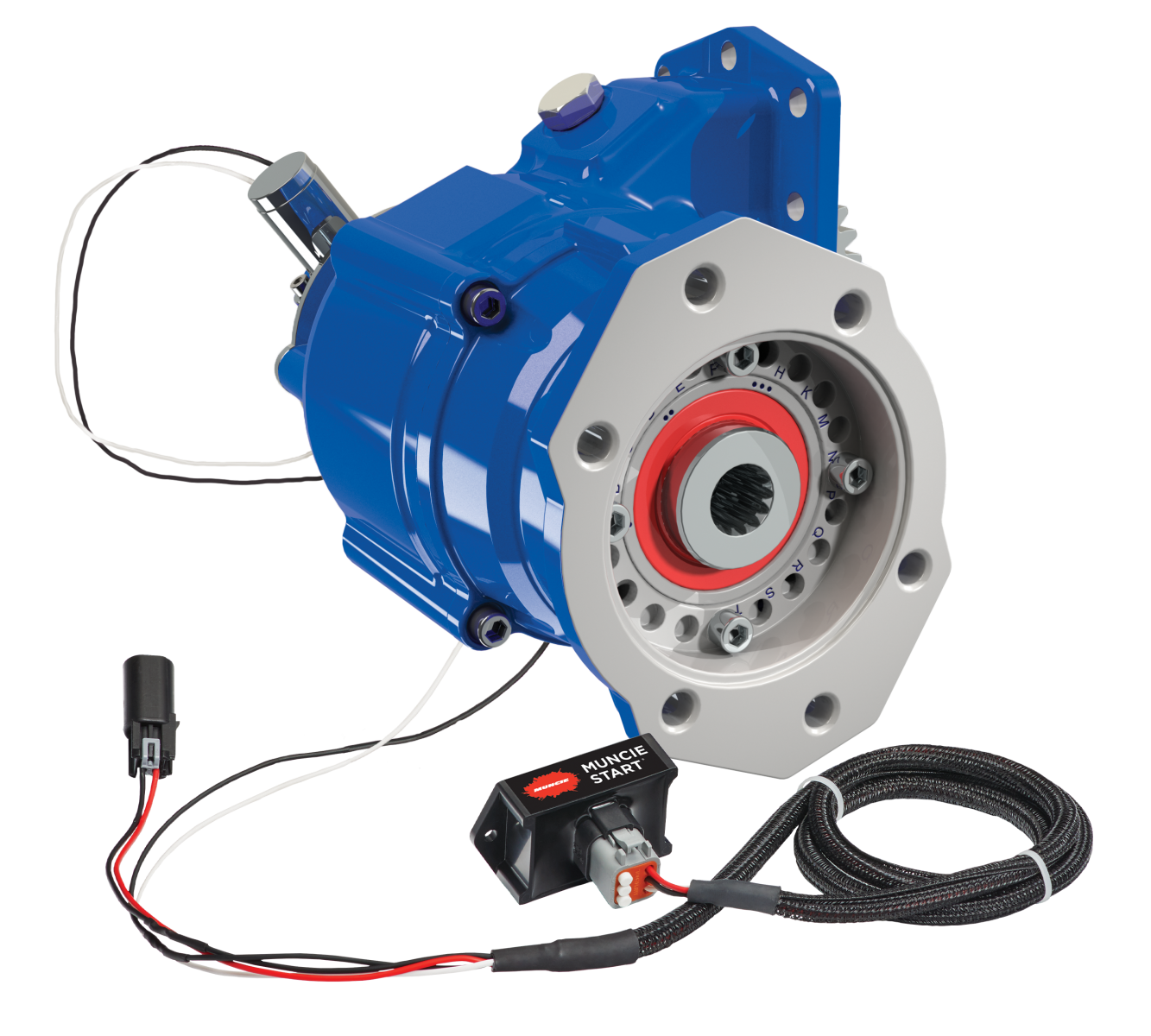

The Muncie Start is an electronically controlled, modulated clutch engagement system from Muncie Power Products that eliminates torque spikes through the power take-off, truck drivetrain and mounted auxiliary equipment upon startup for high-inertia loads. Allowing for a smooth engagement of the power take-off, Muncie Start increases the life of the PTO and driven mechanical components

AVAILABLE WITH THE EX DRIVE SHAFT EXTENSION

The Muncie EX Drive was designed to fit on Allison 3000 and 4000 series transmissions with retarder or cooler, and allows for large gear or piston pumps to be direct mounted, eliminating the need for timely driveline installations. The EX Drive provides maximum torque from the PTO, and is available for the A20 Series PTO.

Brochure
  • Installation Tool Kit Brochure for A20 and A30 PTOs
    MI21-01
Installation Instructions
  • A20 10-BOLT CLUTCH SHIFT PTO ACTIVATION Hino Chassis / Allison 3000 (2021 & Newer)
    IN21-07
  • A20 10-Bolt Clutch Shift PTO Activation Hino Chassis/Allison 3000 (2020 & Older)
    IN21-03
Service Parts Manual
  • A20 Series PTO: A robust, medium-duty PTO featuring a new rotatable flange
    Andrew Dawson – Manager of Marketing & Advertising
  • 6 easy steps to rotate the flange on the new A20 Series PTO
    Breanna Daugherty – Marketing Communications Specialist
  • VIDEO: A20 Series PTO installation
    Andrew Dawson – Manager of Marketing & Advertising
  • Proper power take-off installation with specifically designed tool kit
    Keith Skinner – Field Sales Manager
  • Importance of properly torquing your PTO
    Sean Woodman – Field Sales Manager
  • How to Identify a Power Take-off and Shaft Extension for Allison 10-Bolt Transmissions
    Kyle Beaty – Manager of Digital Marketing and Communications


SPEED

RATIO

3000 SERIES

ENGINE %

4000 SERIES

ENGINE %

INTERMITTENT CONTINUOUS HP (KW)

@ 1,000 RPM

INTERMITTENT/CONTINOUS

TORQUE LBS.FT. (NM)

05 74% 105% 77 (57) 400 (542)

06

85% 122% 77 (57) 400 (542)

07

99% 141% 79 (59) 415 (563)

08

114% 163% 69 (51) 360 (488)

09

122% 175% 65 (48) 340 (461)

10

131% 187% 59 (44) 310 (420)

11

151% 215% 52 (39) 275 (373)

12

162% 231% 50 (37) 265 (359)

15

201% 287% 39 (29) 205 (278)

Approximate Weight: 47.2 lbs. (21.4 Kg.)
