Saddle Mount Tanks
Muncie Power offers hydraulic saddle mount tanks in aluminum and steel, with capacities ranging from 25 to 100 gallons, for truck-mounted hydraulic systems.
Suitable for a wide range of vocational and mobile hydraulic applications, these saddle mount tanks provide reliable fuel storage for demanding, continuous-duty applications that may generate high heat.
Saddle mount hydraulic tanks include standard 2" NPT port size, two porting options and optional rear porting, and optional stainless steel mounting straps.

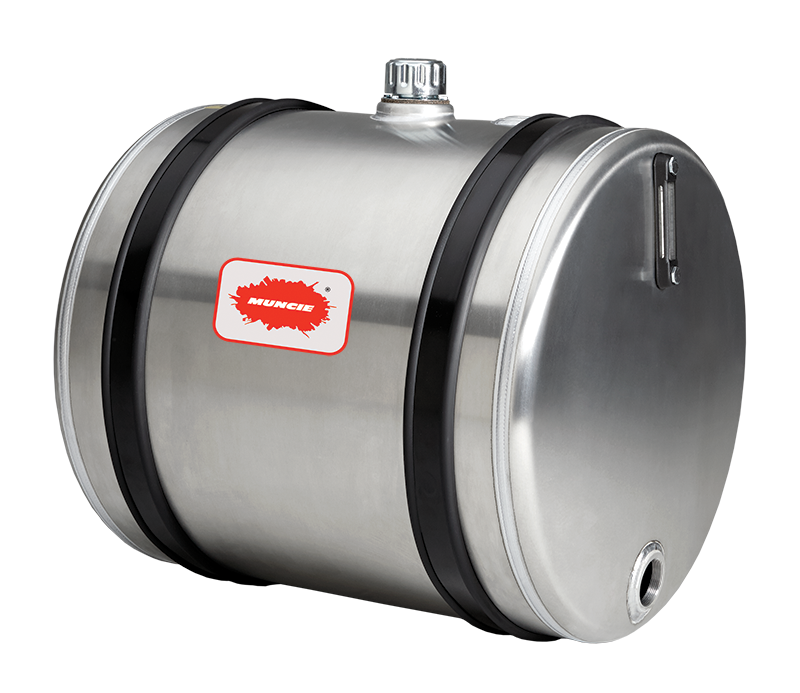

Saddle mount Aluminum Hydraulic Tanks
Aluminum hydraulic tanks are ideal when weight, appearance, and long-term performance matter. These tanks provide excellent corrosion resistance and are well-suited for continuous-duty hydraulic applications that generate significant heat.
Available capacities:
- 25-gallon aluminum hydraulic tank
- 35-gallon aluminum hydraulic tank
- 50-gallon aluminum hydraulic tank
- 60-gallon aluminum hydraulic tank
- 75-gallon aluminum hydraulic tank
- 100-gallon aluminum hydraulic tank

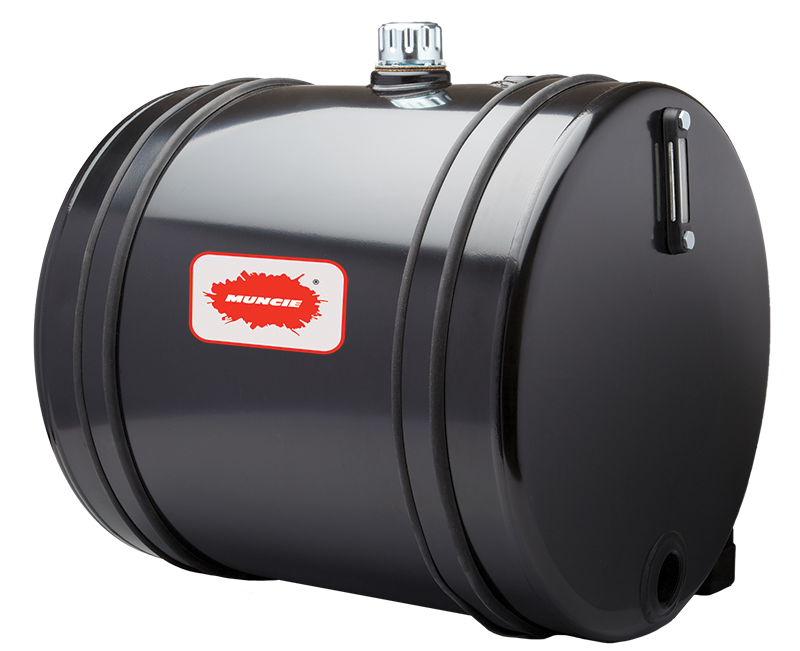

saddle mount Steel Hydraulic Tanks
Steel hydraulic tanks are best when you require durability, strength, and dependable performance. This tank is ideal for continuous-duty hydraulic applications that generate significant heat and require robust construction.
Available capacities:
- 25-gallon steel hydraulic tank
- 35-gallon steel hydraulic tank
- 50-gallon steel hydraulic tank
- 60-gallon steel hydraulic tank
- 75-gallon steel hydraulic tank
- 100-gallon steel hydraulic tank
CUSTOM TANKS
None of these upright hydraulic tanks fit your applications? We offer custom hydraulic tank fabrication built to your specs. Make your next tank exactly what you need.
How to Purchase a saddle Mount Hydraulic Tank
Muncie Power hydraulic tanks are sold through a network of authorized distribution partners.
Start by selecting your tank material and the capacity that best fits your application, then contact a local distributor to discuss availability, pricing, and other recommendations.
Your distributor can help you
- Select the best hydraulic tank capacity for your system
- Choose between aluminum and steel material options
- Confirm mounting requirements and fitment
- Identify compatible accessories and components
- Place an order for a hydraulic tank
Click the WHERE TO BUY button below to find an authorized Muncie Power distributor near you.

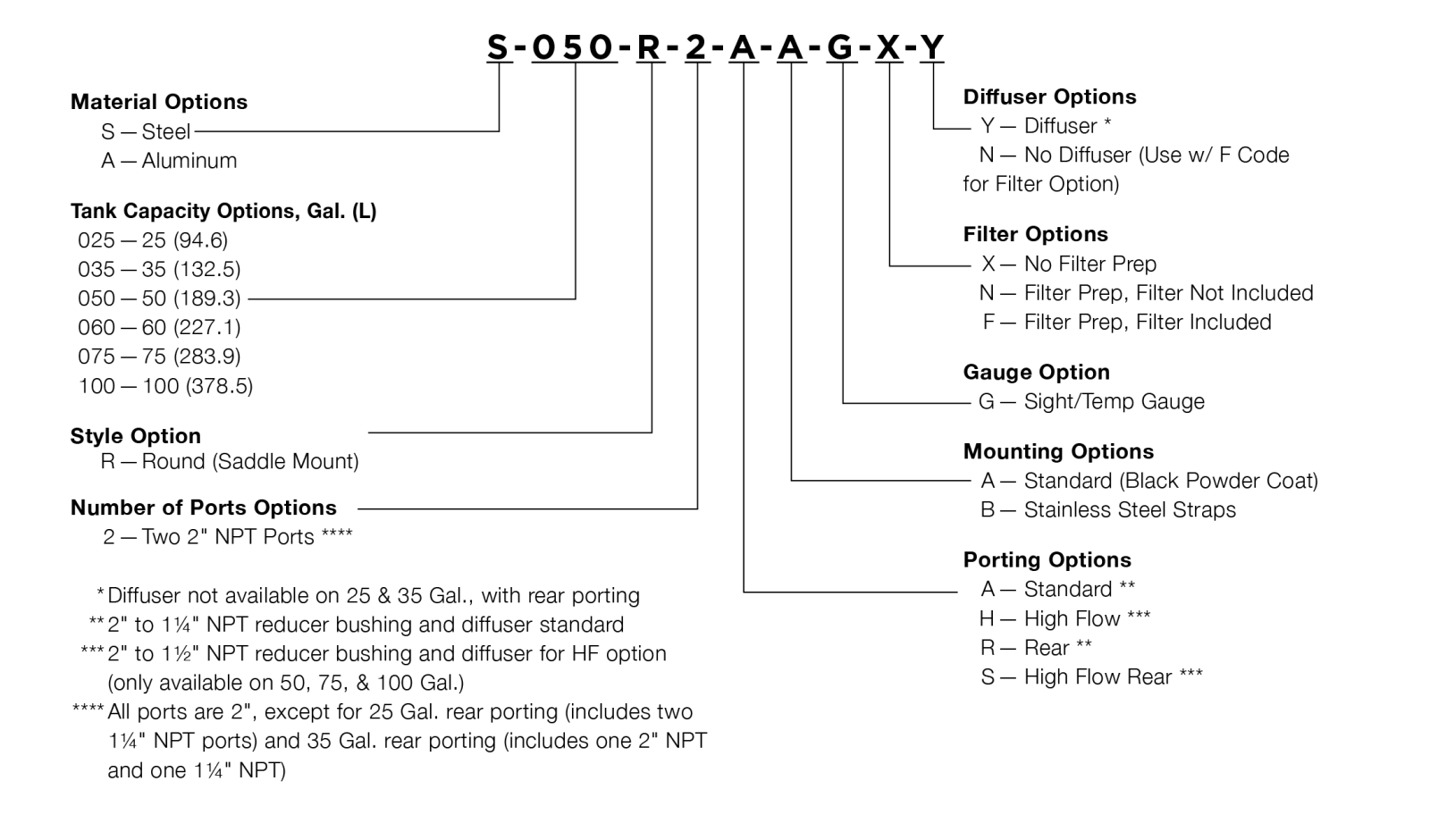

Muncie Power Products will implement a part number change for American Mobile Power standard hydraulic tanks. The company is moving to a consolidated, standardized part numbering system designed to make model code referencing and ordering more intuitive.
The part number change will be effective on July 1, 2026.
For more information, reference this product bulletin regarding the part number change.
-
Installation Instructions for 55 and 75 Gallon Side Mount Reservoirs (S55BS3X) Obsolete/Old styleIN96-02
-
Saddle Mount Aluminum & Steel Tanks Installation Instructions and Service PartsIN26-06
| SADDLE MOUNT HYDRAULIC TANK SPECIFICATIONS | |||||
|---|---|---|---|---|---|
| ALUMINUM MODELS | VOLUME | PORTS | FILTERS | DIMENSIONS | WEIGHT |
| A025R2AAGXY | 25 GAL. | 2 | - | 24" Diameter X 15" Long | 73 LBS |
| A035R2AAGXY | 35 GAL. | 2 | - | 24" Diameter X 19" Long | 76 LBS |
| A050R2AAGXY | 50 GAL. | 2 | - | 24" Diameter X 27" Long | 84 LBS |
| A075R2AAGXY | 75 GAL. | 2 | - | 24" Diameter X 39" Long | 118 LBS |
| A100R2AAGXY | 100 GAL. | 2 | - | 24" Diameter X 51" Long | 180 LBS |
| STEEL MODELS | VOLUME | PORTS | FILTERS | DIMENSIONS | WEIGHT |
| S025R2AAGXY | 25 GAL. | 2 | - | 24" Diameter X 15" Long | 101 LBS |
| S035R2AAGXY | 35 GAL. | 2 | - | 24" Diameter X 19" Long | 106 LBS |
| S050R2AAGXY | 50 GAL. | 2 | - | 24" Diameter X 27" Long | 144 LBS |
| S075R2AAGXY | 75 GAL. | 2 | - | 24" Diameter X 39" Long | 178 LBS |
| S100R2AAGXY | 100 GAL. | 2 | - | 24" Diameter X 51" Long | 226 LBS |
| Notes: 1. Standard port size is 2” NPT. 2. Weight includes mounting kit. 3. Rear porting optional. 4. Stainless Steel Mounting Straps Optional. | |||||
The Muncie Saddle Mount tank is warranted for one year from the time it is first installed upon the equipment against any defect in material and workmanship that causes the reservoir to fail to hold oil which existed when sold by Muncie, according to the following provisions, subject to the requirements that the reservoir must be used only in accordance with catalog and package instructions. If the defective part is returned to Muncie with transportation prepaid, the defective part will be repaired or replaced, at Muncie’s election.
The above warranties shall terminate if any alterations or repairs are made to the product other than at a service center owned by Muncie, or if the product is used on any equipment other than the equipment upon which it is first installed.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESS OR IMPLIED AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.
