PH Series Clutch Pumps

Muncie clutch pumps provide hydraulic power at the flip of a switch. Clutch pumps can be used in situations where a PTO aperture is unavailable or difficult to access. Although normally belt driven, clutch pumps may also be shaft driven from the engine crankshaft.

PH series pumps mount on a flat bracket and are driven via two "vee" belts from an add-on crankshaft pulley.

PF4 series pumps are more compact and are driven via a serpentine belt. (Some kits utilize the OEM pulley and belt, while others use an add-on crankshaft pulley.)

  • Two pump types, sizes form 1.6 - 11 GPM @ 1000 RPM: Wide range of output flows
  • "Vee" and serpentine clutch types: Versatility
  • Four port design (PH Series): Easy installation
  • Compact mounting kit (PF4 Series): Easy installation
  • High torque clutch option (PH Series): Heavy duty applications
Brochure
  • PH Clutch Pump Mounting Kits
    MP87-01
    VIEW
  • H Series Clutch Pump Flyer
    MP88-06
    VIEW
  • H & "K" Series Clutch Pump
    MP89-14
    VIEW
  • H/K Series Spec Brochure
    MP15-18
    VIEW
Installation Instructions
  • General Installation Instructions for Clutch Pumps
    IN81-04
    VIEW
Service Parts Manual
  • H Series Pump Service Parts Design (Clutch)
    SP10-01
    VIEW
PUMP SPECIFICATIONS
Model Number Displacement Cubic in. (CC) MAX* RPM

MIN* RPM

FB/SB MAX PSI (BAR) FY MAX PSI (BAR) MAX Oil Temp. MAX Inlet Vacuum
PH1-03 0.62 (10) 4000 800 3500 (241) 3500 (241) 200°F (93°C) 5 in.HG. (.17 BAR)
PH1-05 1.24 (20) 4000 800 3500 (241) 3500 (241) 200°F (93°C) 5 in.HG. (.17 BAR)
PH1-07 1.55 (25) 3600 800 3000 (207) 3500 (241) 200°F (93°C) 5 in.HG. (.17 BAR)
PH1-09 2.17 (36) 3000 800 2600 (179) 2900 (200) 200°F (93°C) 5 in.HG. (.17 BAR)
PH1-11* 2.48 (41) 3000 800 2000 (138) 2500 (172) 200°F (93°C) 5 in.HG. (.17 BAR)
PK1-13 2.96 (48) 2500 600 N/A 3000 (207) 200°F (93°C) 5 in.HG. (.17 BAR)

Notes:

*Model PH1-11 tested at 2,000 PSI (138 BAR). Flow Rate Tested at 2,500 PSI (172 BAR). PK1-13 pump not tested.

The Muncie PH Series Clutch Pump is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject to the requirements that the Pump must be used only in accordance with catalogue and package instructions.

The Pump is warranted for a period of one year from date of installation. If during the warranty period the Pump fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.

Warning. The above warranty shall terminate if any alterations or repairs are made to the Pump other than at a Service Center owned by Muncie, or if the Pump is used upon any equipment other than the equipment upon which it is first installed.

As to any PH Series Clutch Pump which is rebuilt and retested at a Service Center owned by Muncie, the period of the above warranty is extended for a period of one additional year from the retest date.

THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESSED OR IMPLIED AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.

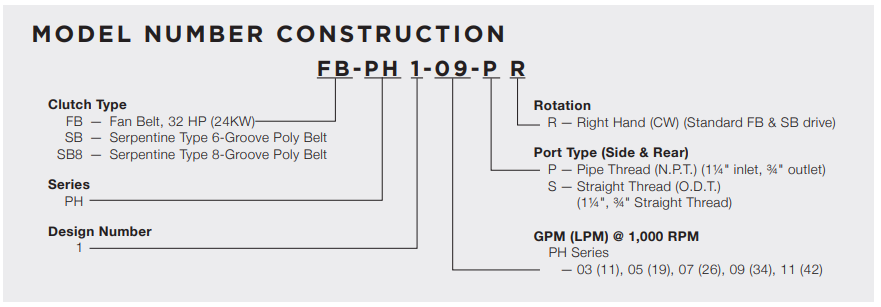

MODEL NUMBER CONSTRUCTION
