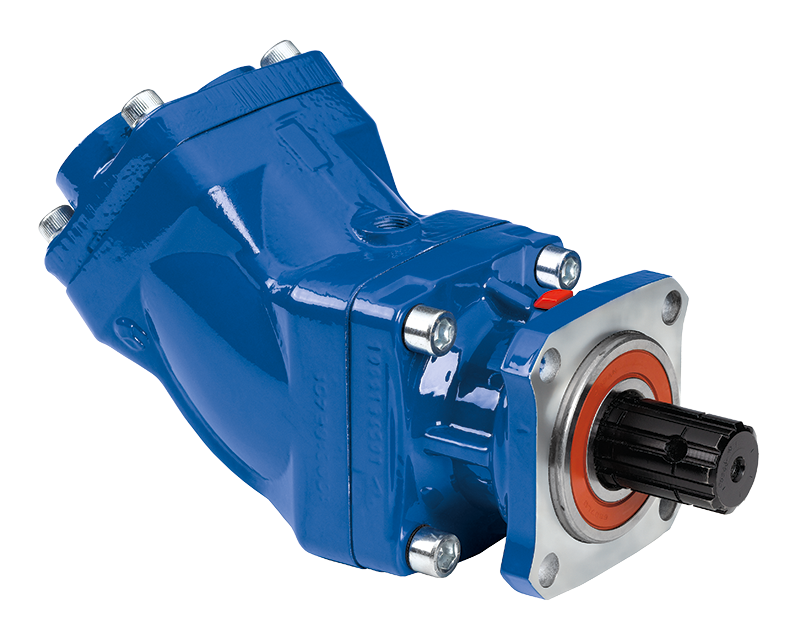

T Series Piston Pump
Muncie Power's fixed displacement piston pumps are designed for higher operating pressures than traditional gear pumps. Muncie Power offers four series of in-line piston pumps, including bent axis and tandem models. All mount directly to the PTO with a standard European DIN 5462 shaft. Complimentary mounts are available on most Muncie Power PTO series.
The T Series piston pump also features the PT2-025 high pressure pump with UNI mount specifically for Ford vehicles with the F20 Series PTO.
- Five standard sizes 7 -29 GPM
- 6525 PSI (450 BAR) continuous duty
- PT2-025 - High pressure pump with UNI mount for Ford vehicles with F20 PTO
- Speeds up to 2300 RPM
- DIN 5462 4-bolt shaft & flange
- Small lightweight design
T Series Piston Pump FlyerMP07-05
Patented Quiet Technology featured in the F22 Series PTO for new Ford F-650 and F-750 Diesel TrucksJim Abbott – Product Planning and Application Engineer
Hydraulic Pumps for Power Take-offs on Ford TrucksAndrew Dawson – Manager of Marketing and Advertising
|Model No.||Display Cu In (CC)||Max RPM||Min RPM||Max Cont. PSI (BAR)||Max Inlet Vacuum||Weight lbs (kg)||Inlet Port||Outlet Port|
|PT2-025||1.56 (25.6)||2300||300||6525 (450)||6 In. HG. (.20 BAR)||13.9 (6,3)||3/4||1/2|
|PT2-047||2.87 (47)||2100||600||6525 (450)||6 In. HG. (.20 BAR)||23.1 (10.5)||1||3/4|
|PT2-064||3.91 (64)||2000||600||6525 (450)||6 In. HG. (.20 BAR)||29.8 (13.5)||1-1/4||1|
|PT2-084||5.13 (80)||1900||600||5800 (400)||6 In. HG. (.20 BAR)||29.8 (13.5)||1-1/4||1|
|PT2-108||6.59 (108)||1700||600||5075 (350)||6 In. HG. (.20 BAR)||29.8 (13.5)||1-1/4||1|
The Muncie T Series Piston Pump is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject to the requirements that the Valve must be used only in accordance with catalogue and package instructions. The Valve is warranted for a period of one year from date of installation. If during the warranty period the Valve fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.
Warning. The above warranty shall terminate if any alterations or repairs are made to the Valve other than at a Service Center owned by Muncie, or if the Valve is used upon any equipment other than the equipment upon which it is first installed.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESSED OR IMPLIED AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.
