V050 Directional Control Valve
Take control of your hydraulic system with Muncie Power Products’ V050 Series directional control valve.The V050 is constructed with high grade iron castings and nickel-plated spools for use in high pressure applications and can be configured with many different spool, control and positioner options. The V050 is designed for flow rates up to 16 GPM (60 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service and support.
• High grade iron castings allow for high pressure capabilities for the most extreme applications
• Nickel plated spools resist wear allowing for long life under high pressure conditions
• Tight tolerances and precision machining keep internal spool leakages low
• Internal oil core design allows for hight flow rates and low pressure drops
• Load-checks on work sections and inlet relief valves are standard

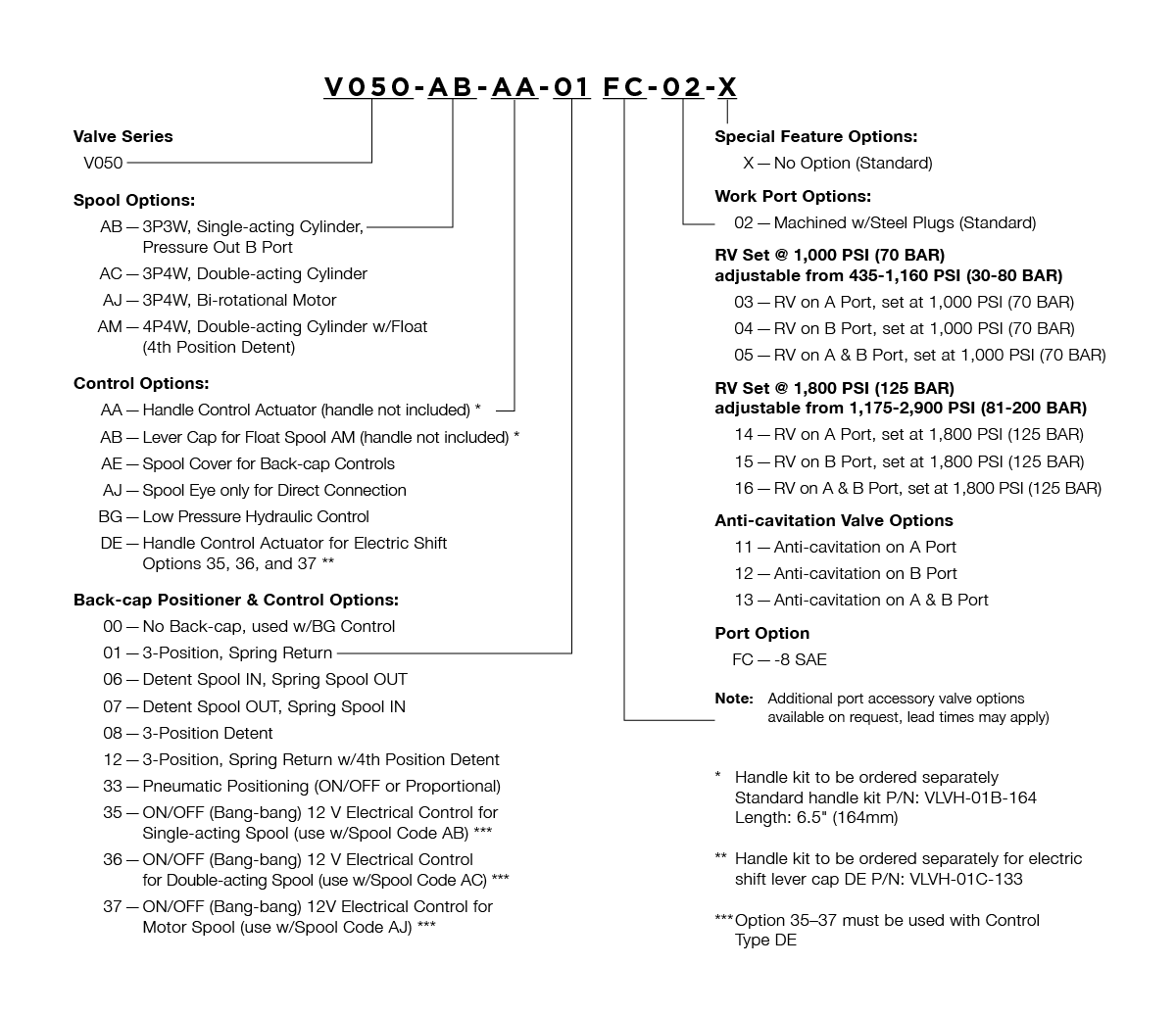

• Versatile design can be configured with different spool, control positioner and accessory options
• Work sections are pre-assembled and 100% tested prior to shipping

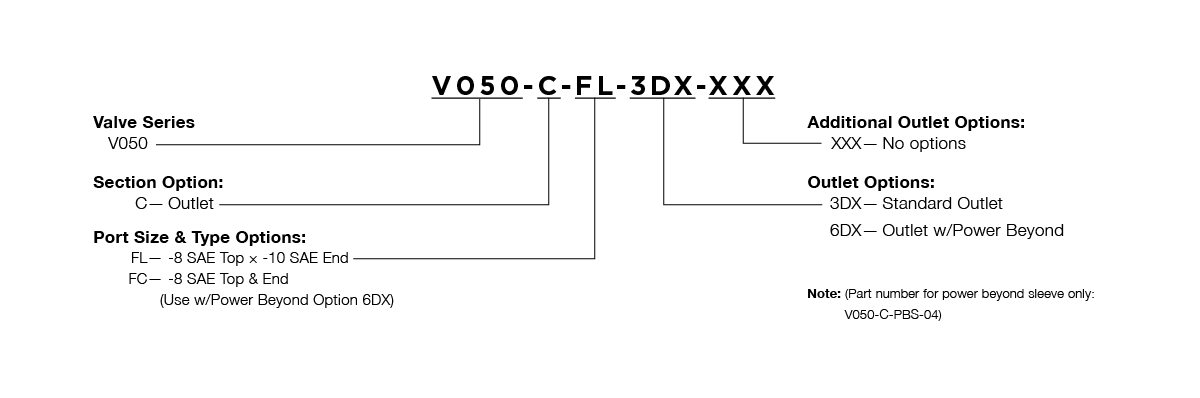

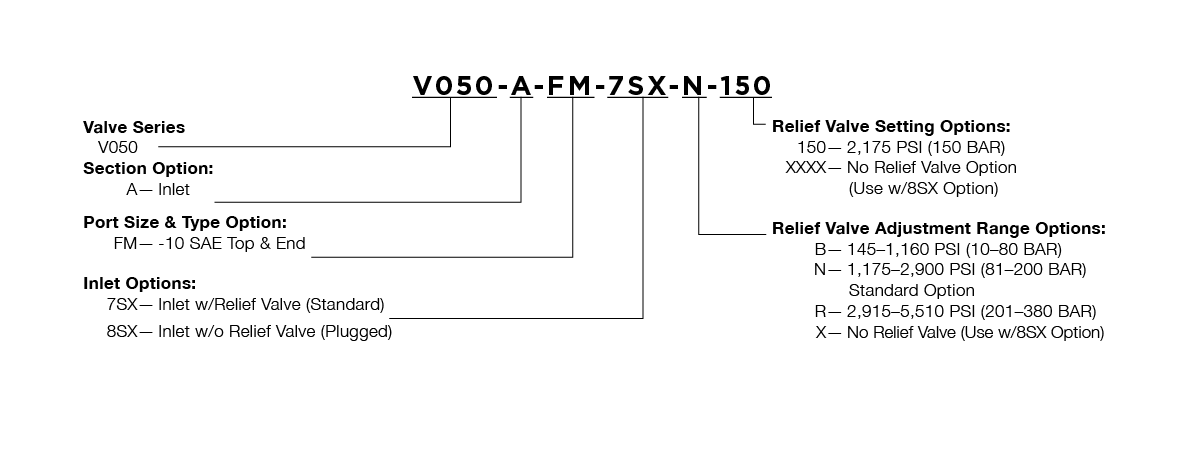

V050 Directional Control Valve Spec BrochureMP16-09VIEW
|Design Type||Max Work Sections||Circuit Types||Flow Capacity||Max Pressure||Max Back Pressure||Recommended Filtration||Oil Viscosity Range||Oil Temperature Range||Recommended Oil Temperature||Approximate Weights (Standard Options)|
|Sectional||10||Open center parallel, series, tandem, and closed center||Nominal: 13 GPM (50 LPM)
Maximum: 16 GPM (60 LPM)
|1-3 sections: 5,440 PSI (375 BAR)
4-6 sections: 5,075 PSI (350 BAR)
7-10 sections: 4,710 PSI (325 BAR)
|365 PSI (25 BAR)||20 / 18 / 15 (ISO 4406:1999)||60 to 1,360 SUS (10 to 300 cSt)||-20 to 180°F (-29 to 82°C)||-85 to 140°F (30 to 60°C)||Inlet: 3.51 lbs. (1.6 Kg)
Outlet: 2.6 lbs. (1.2 Kg)
Work Section: 4.4 lbs. (2.0 Kg)
The Muncie V050 Directional Control Valve is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject to the requirements that the Valve must be used only in accordance with catalogue and package instructions. The Valve is warranted for a period of one year from date of installation. If during the warranty period the Valve fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.
Warning. The above warranty shall terminate if any alterations or repairs are made to the Valve other than at a Service Center owned by Muncie, or if the Valve is used upon any equipment other than the equipment upon which it is first installed.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESSED OR IMPLIED AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.
