E Series Dump Pump

The Muncie E and EH Series dump pumps are designed to meet the needs of the dump trucking industry. Muncie dump pumps are available in both direct and remote mount configurations; standard or extra-large port sizes; two or three line plumbing; and air, cable, or lever shift.

  • Three piece, cast iron construction: Heavy duty, rebuildable
  • Roller bearing design: Long product life
  • Pressure-balanced wear plates: High efficiency
  • Larger ports (EH models): Fast cycle times
  • Remote and direct mount models: Versatility
  • 2 or 3 line options: Versatility

3-Line Dump Pump System

Many dump bodies function quite adequately with a 2-line design. However, a 3-line system includes a separate line to return hydraulic oil from the cylinder directly to the reservoir instead of forcing its way back through the inlet line.

The separate line is recommended when used for road building or stockpiling material because the 3-line pump allows faster down cycles, provides an easier method of filtering the hydraulic oil, and ultimately runs cooler.

Brochure
  • EEH Series Dump Pumps
    MP08-01
    VIEW
  • EEH Series Dump Pumps Design 1
    MP08-01
    VIEW
  • E/EH Series Dump Pumps Spec Brochure
    MP15-09
    VIEW
Installation Instructions
  • ACM-302 Installation Instructions
    IN07-05
    VIEW
  • Dump Pump diagram, 2-Line E Series
    R2999A
    VIEW
  • Dump Pump diagram, 3-Line E Series
    R2998A
    VIEW
  • E Series Dump Pump Installation Instructions
    IN05-05
    VIEW
  • Dump Pump Air Shift Installation kit
    IN02-05
    VIEW
Service Parts Manual
  • EEH Series Dump Pump Service Parts
    SP89-03
    VIEW
  • EEH Series Dump Pump Service Parts Design 1
    SP08-03
    VIEW
  • ES Series Dump Pump Relief Valve Cartridge
    SP93-01
    VIEW
Troubleshooting Guide
  • EEH Series Dump Pump Troubleshooting Guide
    TRG08-03
    VIEW
PUMP SPECIFICATIONS
Series/Model GPM (Liters)
Displacement Cubic in. (CC)
WT.** lbs. (Kg)
MAX* RPM
MIN* RPM
MAX* Pres PSI (BAR)
Inlet N.P.T Port Cylinder N.P.T Port Return N.P.T Port
E/23 (87) 5.20 (85.23) 67 (30.4) 2500 800 2500 (173) 1-1/4 1 1
E/27 (102) 6.37 (104.40) 69 (31.3) 2500 800 2500 (173) 1-1/4 1 1
EH/23 (87) 5.20 (85.23) 68 (30.8) 2500 800 2500 (173) 1-1/2 1 1-1/4
EH/27 (102) 6.37 (104.40) 70 (31.7) 2500 800 2500 (173) 1-1/2 1 1-1/4
* Intermittent duty cycles only. Not recommended for ejector, conveyor, or moving floor type equipment.
** Weights listed are for remote mount pumps without brackets. For direct mount pumps add 2 lbs. (0.9 kg).

The Muncie Cast Iron/Roller Bearing Pump Red E/EH Series is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject to the requirements that the Pump must be used only in accordance with catalogue and package instructions.

The Pump is warranted for a period of one year from date of installation. If during the warranty period the Pump fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.

Three Year Warranty. Both the Muncie E/EH Series Dump Pump and CS/TG Series PTOs are warranted for a full three years when combined with the Complete Muncie Tractor WetLine Kit with Polyethylene Hydraulic Reservoir and Hoses (3 line systems only). All additional warranty details described for the Polyethylene Hydraulic Oil Reservoir applies.

Warning. The above warranty shall terminate if any alterations or repairs are made to the Pump other than at a Service Center owned by Muncie, or if the Pump is used upon any equipment other than the equipment upon which it is first installed.

As to any Cast Iron/Roller Bearing Pump Red E/EH Series which is rebuilt and retested at a Service Center owned by Muncie, the period of the above warranty is extended for a period of one additional year from the retest date.

THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESSED OR IMPLIED AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.

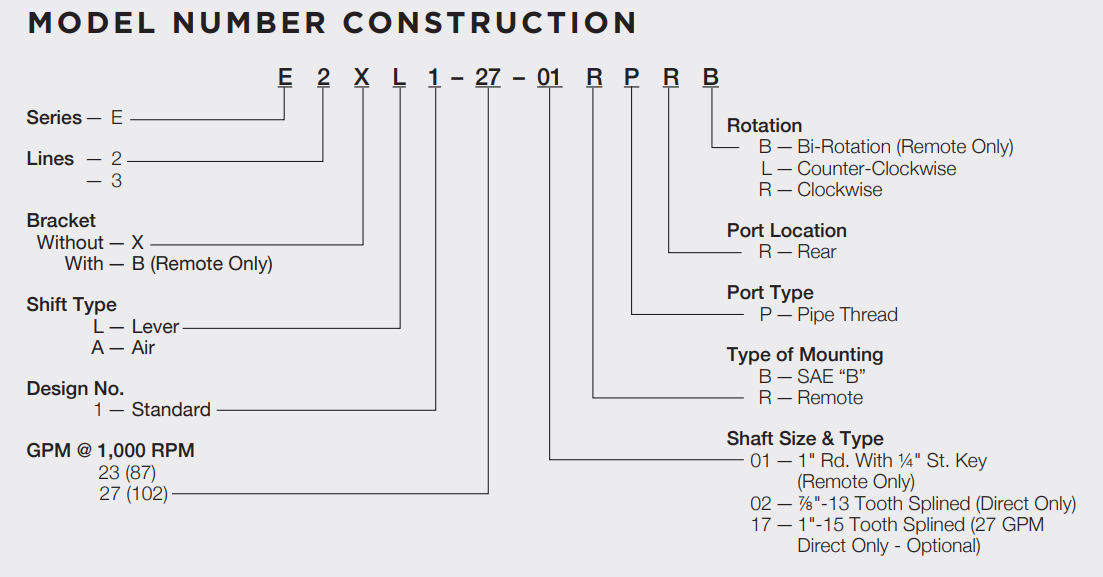

MODEL NUMBER CONSTRUCTION
