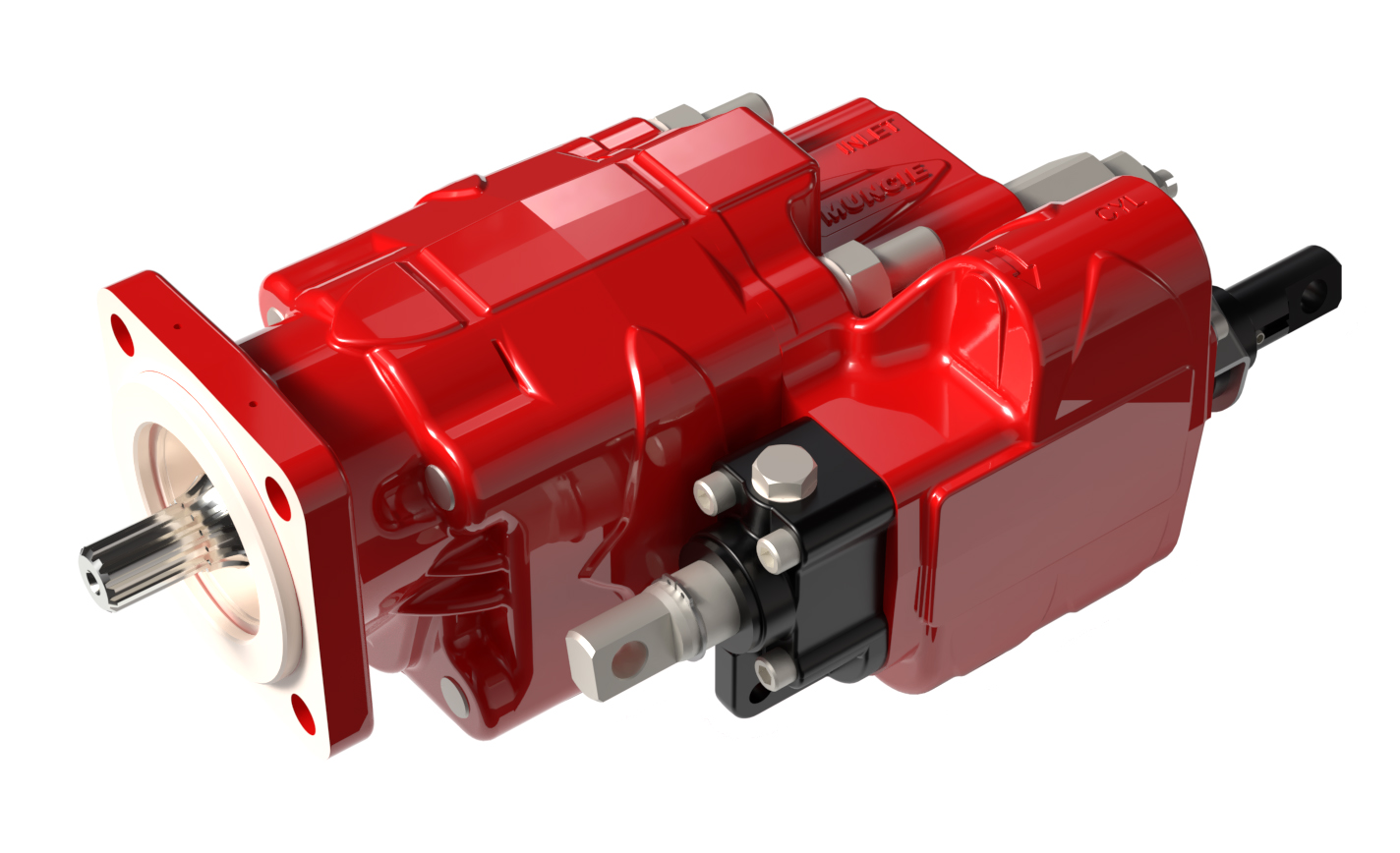

- Three piece, cast iron construction: Heavy duty, rebuildable
- Roller bearing design: Long product life
- Pressure-balanced wear plates: High efficiency
- Larger ports (EH models): Fast cycle times
- Remote and direct mount models: Versatility
- 2 or 3 line options: Versatility
3-Line Dump Pump System
Many dump bodies function quite adequately with a 2-line design. However, a 3-line system includes a separate line to return hydraulic oil from the cylinder directly to the reservoir instead of forcing its way back through the inlet line.
The separate line is recommended when used for road building or stockpiling material because the 3-line pump allows faster down cycles, provides an easier method of filtering the hydraulic oil, and ultimately runs cooler.
Installation InstructionsACM-302 Installation InstructionsVIEW
Installation InstructionsDump Pump Air Shift Installation kitVIEW
Installation InstructionsDump Pump diagram, 2-Line E SeriesVIEW
Installation InstructionsDump Pump diagram, 3-Line E SeriesVIEW
Installation InstructionsE Series Dump Pump Installation InstructionsVIEW
BrochureE/EH Series Dump Pumps Spec BrochureVIEW
Service Parts ManualEEH Series Dump Pump Service PartsVIEW
Service Parts ManualEEH Series Dump Pump Service Parts Design 1VIEW
Troubleshooting GuideEEH Series Dump Pump Troubleshooting GuideVIEW
BrochureEEH Series Dump PumpsVIEW
BrochureEEH Series Dump Pumps Design 1VIEW
Service Parts ManualES Series Dump Pump Relief Valve CartridgeVIEW
The Muncie Cast Iron/Roller Bearing Pump Red E/EH Series is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject to the requirements that the Pump must be used only in accordance with catalogue and package instructions.
The Pump is warranted for a period of one year from date of installation. If during the warranty period the Pump fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.
Three Year Warranty. Both the Muncie E/EH Series Dump Pump and CS/TG Series PTOs are warranted for a full three years when combined with the Complete Muncie Tractor WetLine Kit with Polyethylene Hydraulic Reservoir and Hoses (3 line systems only). All additional warranty details described for the Polyethylene Hydraulic Oil Reservoir applies.
Warning. The above warranty shall terminate if any alterations or repairs are made to the Pump other than at a Service Center owned by Muncie, or if the Pump is used upon any equipment other than the equipment upon which it is first installed.
As to any Cast Iron/Roller Bearing Pump Red E/EH Series which is rebuilt and retested at a Service Center owned by Muncie, the period of the above warranty is extended for a period of one additional year from the retest date.
