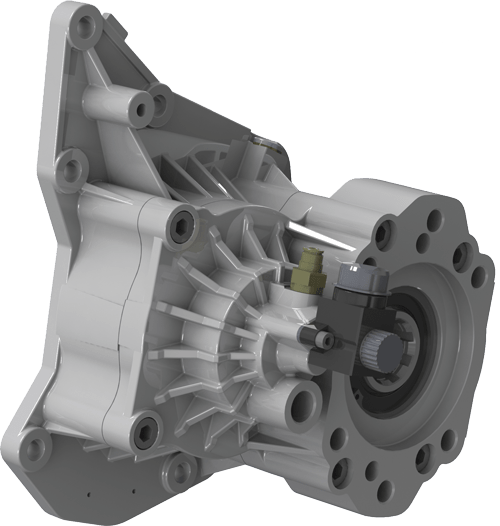

RS6S-P89M Series Power Take-Off
STRUCTURAL SUPPORT WITH INTEGRAL HYDRAULIC MOUNT
Muncie Power’s RS6S-P89M PTO is designed to fit Detroit DT12 transmissions in Freightliner or Western Star Class 8 Cascadia or 5700 trucks. Detroit PTO Prep Kit option 362-822 is required by the transmission. For this unit, the main feature is the integral hydraulic mount for structural support of hydraulic pumps up to 60 lbs.* (27 Kg.) without additional transmission support. The RS6S-P89M is capable of different ratios, several different outputs and the ability to mount larger displacement pumps.
• Fits Detroit DT12 transmission
• Solenoid-activiated mechanical shift
• Available with direct mount or companion flange output options
• Takes advantage of full torque capacity of transmission
• Will allow for larger pumps without support*
*Bending moment limit of 29.5 ft.lb. max.
PTOs for Detroit DT12 TransmissionMI21-02
RS6S-P89M Spec BrochureMP17-02
RS6S GB1 Add-On Gearbox InstallationIN17-13
RS6S-P89M Installation ManualIN17-01
RS6S-P89M Installation SheetIN17-02
GB1 Series Low Box - Parts List and Service ManualSP20-02
RS6S-P89M Parts List & Service ManualSP18-05

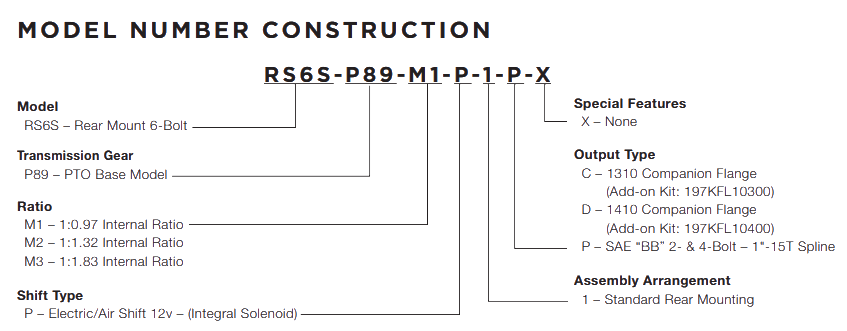

|Model Number||Max Torque* lb-ft (Nm)||Max HP @ 1,000 RPM (kW)||Outputs||Internal Ratio|
|RS6S-P89M1-P1PX||317 (430)||60 (45)||SAE "BB" or 1410 Companion Flange||0.97|
|RS6S-P89M2-P1PX||317 (430)||60 (45)||SAE "BB" or 1410 Companion Flange||1.32|
|Optional Add-On Reduction Box: GB1P-205-125A||200 (270)||38 (28)||1 1/4" Round 5/16" kW Mounts to SAE "BB" Output PTO||
Approximate Weight: 23 lbs. (10.4 Kg.)
The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.
If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.
