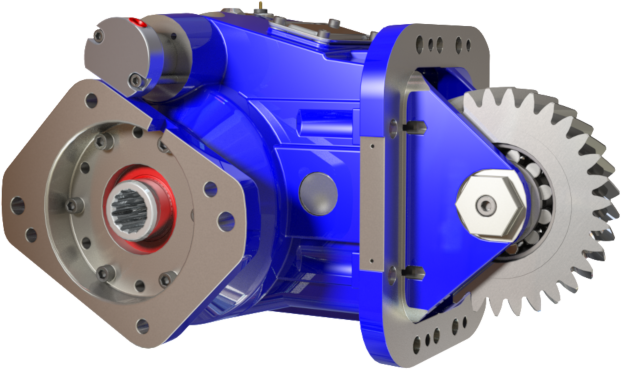

828 PTO with DT12 Adapter

Muncie Power Products has developed PTO adapter gears specifically designed to mount current TG8 and 828 series PTOs to the bottom aperture on Detroit DT12 Overdrive transmissions.

The Detroit DT12 Overdrive models, commonly used on Western Star 49X trucks, provide the opportunity for dual PTO usage. An adapter gear is required when using our standard 8-bolt PTOs for the bottom PTO opening. The adapters are currently available for the DT-OV, DT12-OVX, and DT12-OHE Overdrive models. Selection of the proper adapter gear is required and the PTO prep package must be orderd from the dealer for activation components.

Adapter gear P/Ns - Daimler Trucks North America model code (Detroit model code in parentheses)

  • 40TA6479 – DT12-OHE, DT12-OV (Detroit OC transmission)
  • 40TA6480 – DT12-OVX (Detroit OD transmission)

•    Designed to allow TG8 and 828 series PTOs to mount onto Detroit DT12 transmissions
•    PTO will use commonly used U68 input gears
•    Adapter allows for full rating of PTO
•    Each transmission variant will use a different adapter; adapters available only for overdrive transmissions at SOP
•    Special gasket required between PTO and adapter; standard gaskets used between adapter and transmission

Brochure
Installation Instructions
  • TG-82 Activation Instructions DT-12 Bottom Opening
    IN21-10
  • New DT12 adapter gears provide bottom-mount flexibility on Detroit DT12 transmissions
    Breanna Daugherty – Marketing Communications Specialist
PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio
Intermittent HP@1000 RPM
Intermittent Torque lbs.ft.
Continuous Torque lbs.ft.
Intermittent (kw)@1000 RPM
Intermittent Torque (NM)
Continuous Torque (NM)
05 95 500 350 (71) (678) (475)
06 85 450 315 (71) (610) (427)
08 85 450 315 (63) (610) (427)
09 78 410 287 (58) (556) (389)
10 78 410 287 (58) (556) (389)
12 71 375 263 (53) (508) (356)
13 71 375 263 (53) (508) (356)
15 67 350 245 (50) (475) (332)
19 57 300 210 (43) (407) (285)
