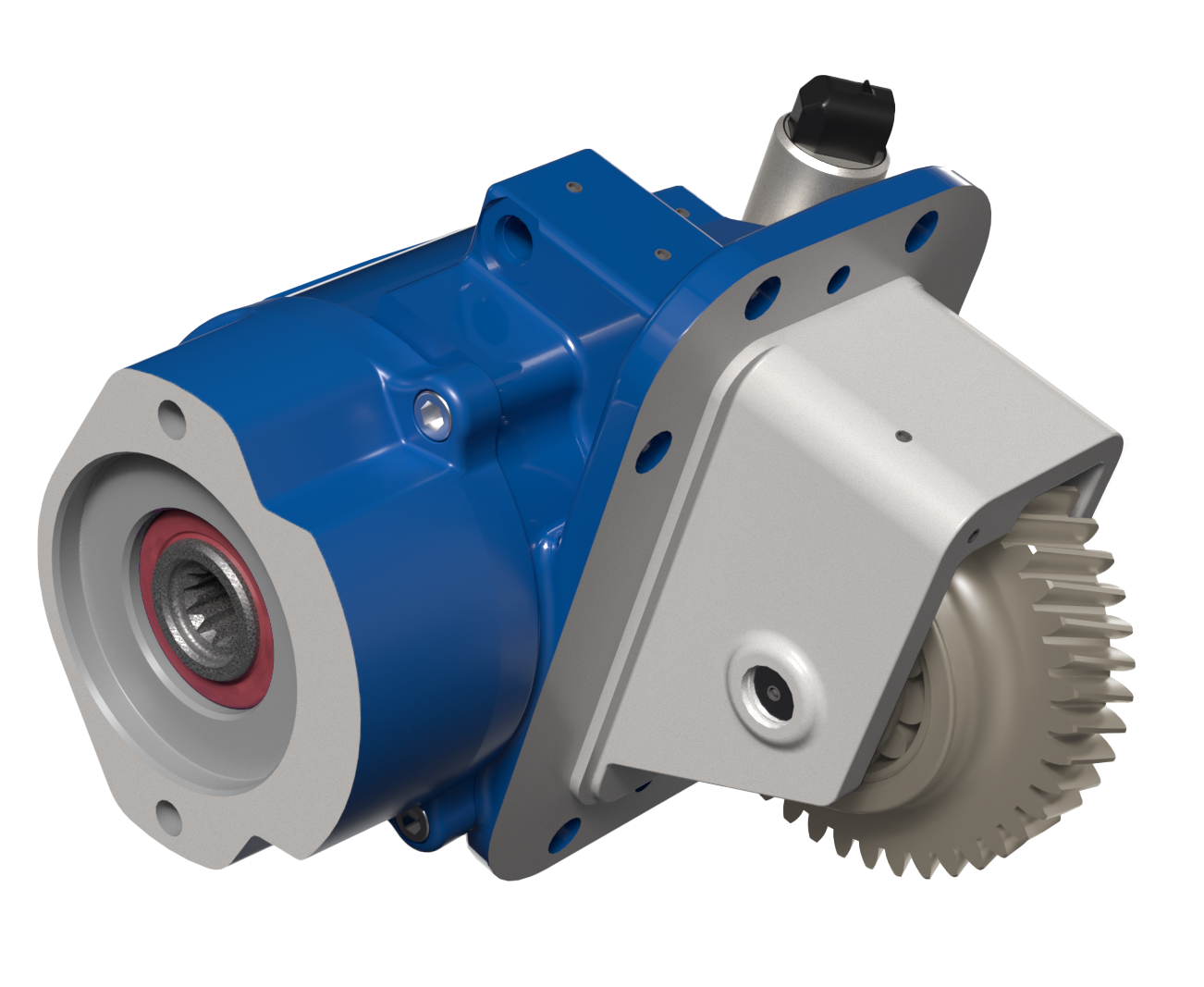

Z25 Series Power Take-Off
The Z25 Series is a light-duty, clutch shift PTO specifically designed for the TorqueFlite HD/ZF PowerLine transmission. This PTO can only be mounted on the left side (driver side) of RAM applications. This PTO allows the ability to direct mount pumps on 4x4 applications.
- Light-duty, clutch shift PTO for TorqueFlite HD/ZF PowerLine
- Driver-side (left-side) only on RAM applications
- Single ratio option—145% of engine speed
- 125 lbs. ft. torque rating
- Different port sizes on activation and switch ports
- Integral solenoid
- Round keyed output also available
- Low-profile housing
- Single gasket—no measuring backlash
- Designed for the PF4 Series gear pumps and FX Series pistion pumps
-
The Z21 Series and Z25 Series Power Take-offs for the RAM TorqueFlite/ZF PowerLine TransmissionBreanna Martinez – Marketing Communications Specialist II
|
SPEED RATIO |
OUTPUT SPEED (% OF ENGINE SPEED) |
INTERMITTENT CONTINUOUS HP @ 1,000 RPM |
INTERMITTENT/CONTINOUS TORQUE LBS.FT. |
|---|---|---|---|
| 13 | 145% | 24 | 125 |
Approximate Weight: 40 LBS
The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year (two years on Allison World Transmission PTOs) after date of original installation any defective part or parts or any product not meeting the specifications.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.
If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.
