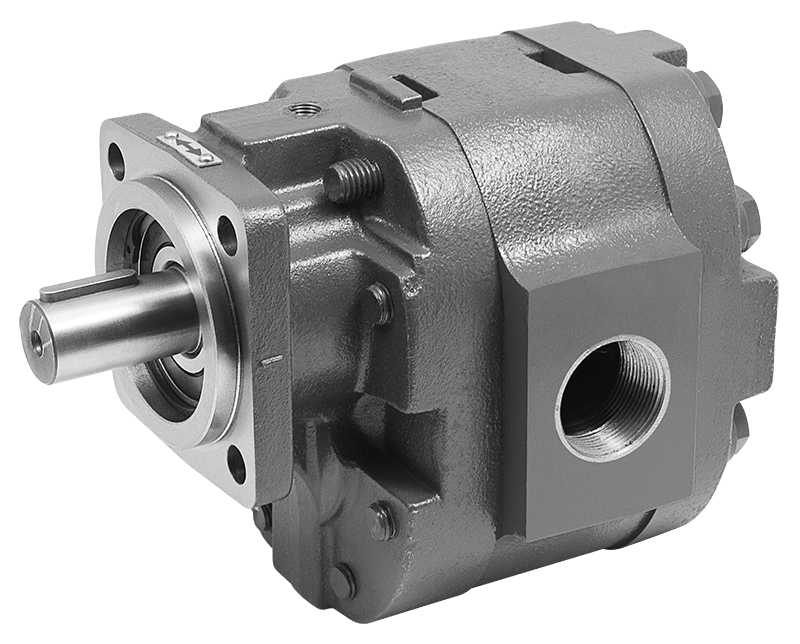

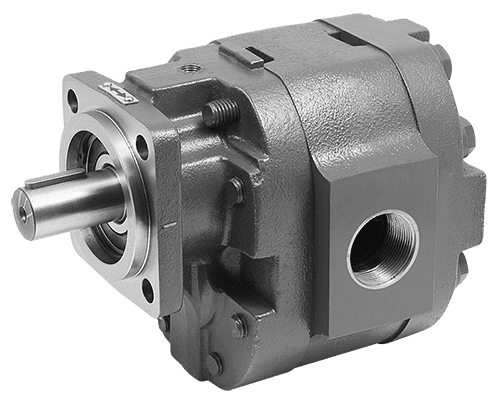

Z Series Gear Pump

"Z" Series gear pumps are in stock or can be assembled at a number of Muncie facilities in the USA.  The cast-iron Z Series is offered in both roller bearing and bushing designs and in a wide variety of displacements.  Industry standard shafts and port options are available.

  • High grade cast-iron construction
  • High quality fasteners
  • Multiple displacements within each product family
  • Up to 3000 PSI for roller bearing models and 3,500 PSI for bushing versions
  • SAE and Metric porting options
  • Multiple shaft and flange options
  • Z10 & Z16 Technical Specifications
  • Z22 Technical Specifications
  • Z28 Technical Specifications
  • Z32 Technical Specifications
  • Z34 Technical Specifications
  • Z38 Technical Specifications
  • Z40 Technical Specifications
  • Z Series Gear Pump Brochure
Installation Instructions
  • New or Replacement Pump Installation Instructions
See details for each size range by clicking "Support Documents"

The Muncie Cast Iron Pump “Z Product Group” is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject to the requirements that the Pump must be used only in accordance with catalogue and package instructions.

The Pump is warranted for a period of one year from the date of installation. If during the warranty period the Pump fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.

Warning: The above warranty shall terminate if any alterations or repairs are made to the Pump other than at Muncie Power Products, or if the Pump is used on any equipment other than the equipment upon which it is first installed.

The foregoing warranties are in lieu of all other obligations and liabilities, including negligence and all warranties of merchantability and suitability, expressed or implied, and state Muncie’s entire and exclusive liability and buyer’s exclusive remedy for any claim of damages in connection with the sale, repair or replacement of the above goods, their design, installation or operation. Muncie will in no event be liable for any direct, indirect, special, incidental or consequential damages whatsoever, and our liability under no circumstances will exceed the contract price for the goods for which liability is claimed.

No additional data at this time.
