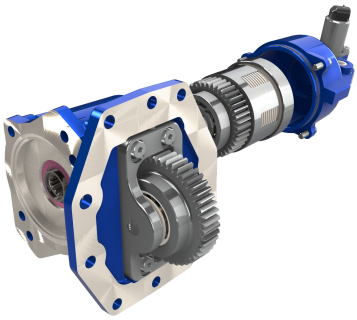

F22 Series Power Take-Off





The new F22 SERIES POWER TAKE-OFF is specifically designed for applications utilizing the new 10R140 Series transmissions in model year 2024 and beyond Ford F-650 & F-750 diesel trucks. This medium-duty PTO series features a new 8-bolt mounting pattern unique to this transmission, and includes Muncie Power’s patented noise abatement technology. The F22 Series will be compatible with the Muncie Start® and has a robust torque rating of 300 ft.lbs. at the transmission gear.

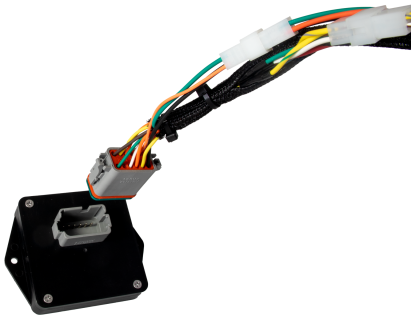

New RPM Control Module

A new plug & play wire harness module will be introduced with the F22 Series. This wire harness makes installation and configuration much easier. An LED—located on the back of the module—will provide diagnostic information in order for you to better diagnose any issues that may arise in the install process.





NEW DESIGN

The F22 Series PTO features a brand new 8-bolt mounting pattern that is specific to Ford’s 10R140 transmission. These transmissions will be standard in F-650 & F-750 Super Duty diesel trucks beginning in 2023.

NEW RPM CONTROL MODULE TECHNOLOGY

  • The new wire harness makes installation and configuration much easier. An LED will provide diagnostic information in order for you to better diagnnose any issues that may arise in the install process.
  • Replaces traditional analog components and harnesses.
  • No more splicing wires.

NOW AVAILABLE WITH STANDARD PUMP FLANGE OPTIONS

  • Provides ample space allowing the direct mount of five different Muncie Power series of hydraulic pumps.

PROVEN TECHNOLOGY

  • Proven clutch pack technology to ensure optimal output and longevity
Brochure
Installation Instructions
Service Parts Manual
  • VIDEO: F22 Series PTO with Quiet Technology Built for Ford F-650 & F-750 Diesel Trucks
    Breanna Daugherty – Marketing Communications Specialist
  • New F22 Series PTO for Ford's 10-speed Transmissions in F-650 and F-750 Diesel Trucks
    Breanna Daugherty – Marketing Communications Specialist
  • Patented Quiet Technology featured in the F22 Series PTO for new Ford F-650 and F-750 Diesel Trucks
    Jim Abbott – Product Planning and Application Engineer
  • Hydraulic Pumps for Power Take-offs on Ford Trucks
    Andrew Dawson – Manager of Marketing and Advertising
  • How to Install and Program the PTO RPM Module on Ford Trucks
    Jim Abbott – Product Planning and Application Engineer
  • Click, Clack, Clatter: Why is My PTO Making Noise?
    Jim Abbott – Product Planning and Application Engineer
  • Introducing Muncie Start
    Whitney VanKlaveren – Marketing Communications Coordinator
  • The Start of Something – Muncie Start
    Jim Abbott – Product Planning and Application Engineer
PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio
% of Engine Speed
Intermittent HP @ 1,000 RPM
Intermittent Torque lbs.ft.
12 130% 50 (37) 261 (354)







The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.



THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.



If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.
