Forestry

  • A30 Series Power Take Off

    Designed for Allison 3000 & 4000 Series Transmissions

    The A30 Series is a 10-bolt medium-duty, constant drive PTO rated for up to 415 lbs.ft. torque intermittent/continuous and features various product improvements allowing for easier installation and a more durable PTO for Allison 3000 and 4000 Series transmissions.



    ROTATABLE PUMP FLANGE



  • CS10/CS11 Series Power Take-Off

    Constructed with large gears, the CS10 Series PTO is built for heavy duty applications. The CS10 features a drag brake and an output shaft designed around popular hydraulic pumps. For a more compact installation, the CS11 is a remotely mounted solenoid option.

    Max Torque

    500 lbs.ft.

    Max HP (@1000 RPM)

    95 HP

    Weight

    68 lbs.

  • CS24/CS25 Series Power Take-Off

    The CS24/24 is an obsolete product. This page is used for reference material only.

    Designed with the same technology as the CS10 Series, the CS24 Series PTO is 20 percent smaller. CS PTOs are engaged by means of a direct mounted solenoid, which activates an internal wet clutch pack. With this feature, installation is made simple with a single hose connection

    Max Torque

    325 lbs.ft.

    Max HP (@1000 RPM)

    62 HP

    Weight

    52 lbs.

  • CS40/CS41 Series Power Take-Off

    When you need the max power from an Allison 3000 or 4000 and Caterpillar CX transmission, the CS40/41 Series power take-off delivers. Constructed with the widest gears possible, the CS40/41 is built for maximum strength, noise reduction, durability and the highest output torque rating available.

    Max Torque

    600 lbs.ft.

    Max HP (@1000 RPM)

    114 HP

    Weight

    69 lbs.

  • Metal Round Reservoirs

    Muncie's metal round reservoirs are available in both aluminum and steel and are designed for hard working, continuous-duty applications that may generate high amounts of heat and other applications where a metal reservoir is preferred.

  • Metal Upright Reservoirs

    Muncie offers metal upright tanks available in both aluminum and steel. Aluminum reservoirs are offered when weight, appearance and performance are important, while steel is the preferred solution when quality and dependability are required. Our premium quality reservoir is designed for hard working, continuous-duty applications that may generate high amounts of heat and other applications where a metal tank is preferred.



  • Optimum W Series

    The Optimum W Series gear pumps/motors offer premier performance for a wide variety of applications across several industries. Featuring the innovative OPTI-Grip® technology, the Optimum W Series exemplifies strength, endurance and rigidity making for long lasting units even in the most extreme conditions. The W Series is the smallest range of the Optimum group, providing 8 displacements to cover low flow, higher pressure requirements.

    Displacement (Cu.In./Rev)

    1.45 - 4.87

    GPM (@1000 RPM)*

    6.3 - 25.4

    Max Pressure

    4,350 PSI

    *Flow rates are theoretical.

  • Optimum X Series

    The Optimum X Series gear pumps/motors offer premier performance for a wide variety of applications across several industries. Featuring the innovative OPTI-Grip® technology, the Optimum X Series exemplifies strength, endurance, and rigidity making for long lasting units even in the most extreme conditions. The X Series is the middle range of the Optimum group, providing nine displacements to cover light to heavy flow and pressure requirements.

    Displacement (Cu.In./Rev)

    3.18 - 8.43

    GPM (@1000 RPM)*

    13.8 - 36.5

    Max Pressure

    4,350 PSI

    *Flow rates are theoretical.

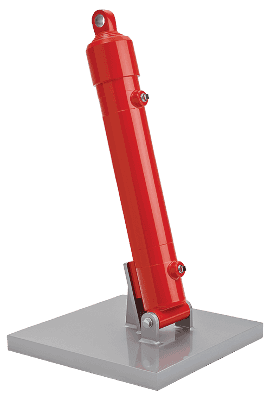

  • Pin-Pin Cylinders

    The combination of strict machining tolerances, solid stop contact faces, and larger overlap between the stages has resulted in one of the strongest and most stable cylinder columns currently available on the market. These improvements help to increase safety for dumping applications, helping to prevent accidents due to vehicle roll-over.

    Stroke

    84 - 285 in

    Max Pressure

    2,900 PSI

  • PK Series Gear Pump

    The PK Series is designed to meet the application needs of either a pump or a motor with displacements between 4 GPM and 17 GPM at 1000 RPM.

    Displacement (Cu.In./Rev)

    .98 - 3.94

    GPM (@1000 RPM)*

    4.2 - 17.1

    Max Pressure

    3,000 PSI

    *Flow rates are theoretical.

  • PL Series Gear Pump

    The PL Series is designed to meet the application needs of either a pump or a motor with displacements between 14 GPM and 30 GPM at 1000 RPM.

    Displacement (Cu.In./Rev)

    3.18 - 7.01

    GPM (@1000 RPM)*

    13.8 - 30.3

    Max Pressure

    3,000 PSI

    *Flow rates are theoretical.

  • Steel Box Reservoirs

    Muncie steel box reservoirs are offered in a large variety of sizes from compact to midsize models, providing a wide range of product diversity. Our reservoirs feature multiple return ports and are designed for easy installation by utilizing welded mounting rails with punched holes.

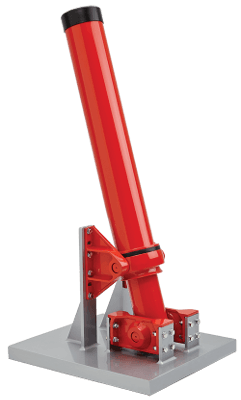

  • Trunnion Mount Cylinders

    Muncie Power's Trunnion Mount cylinders not only offer the mounting style that allows for increased capacity in the dump body by allowing for significant reduction or elimination of the dog house, but also many other features. With the strict machining tolerances, solid stop contact faces, and larger overlap between stages the Muncie Power cylinders are one of the strongest and most stable cylinders on the market.

    Stroke

    82 - 194 in

    Max Pressure

    2,900 - 3,200 PSI

  • V080 Directional Control Valve

    The V080 is constructed with high grade iron castings and nickel-plated spools for use in high pressure applications and can be configured with many different spool, control, and positioner options. The V080 is designed for flow rates up to 30 GPM (114 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service & support.

    Flow Capacity (Nominal)

    21 GPM (80 LPM)

    Flow Capacity (Maximum)

    30 GPM (114 LPM)

    Max Pressure (1-3 Sections)

    5,075 PSI (350 BAR)

    Max Pressure (4-6 Sections)

    4,650 PSI (320 BAR)

    Max Pressure (7-10 Sections)

    4,350 PSI (300 BAR)

  • V130 Directional Control Valve

    The V130 is constructed with high grade iron castings and nickel-plated spools for use in high pressure applications and can be configured with many different spool, control, and positioner options. The V130 is designed for flow rates up to 55 GPM (208 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service & support.

    Flow Capacity (Nominal)

    34 GPM (130 LPM)

    Flow Capacity (Maximum)

    55 GPM (208 LPM)

    Max Pressure (1-3 Sections)

    5,440 PSI (375 BAR)

    Max Pressure (4-6 Sections)

    5,075 PSI (350 BAR)

    Max Pressure (7-10 Sections)

    4,710 PSI (325 BAR)

  • V250 Directional Control Valve

    Take control with Muncie Power Products’ V250 directional control valve. The V250 is constructed with high grade iron castings and nickel-plated or hard chrome spools for use in high pressure applications and can be configured with many different spool, control and positioner options. The V250 is designed for flow rates up to 75 GPM (280 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service and support.

    Flow Capacity (Nominal)

    67 GPM (250 LPM)

    Flow Capacity (Maximum)

    75 GPM (280 LPM)

    Max Pressure

    4,000 PSI (275 BAR)
