Dump Body

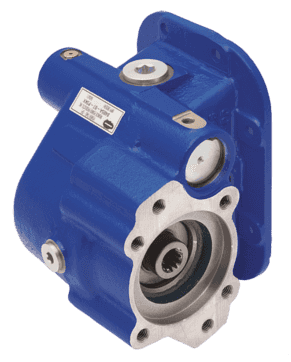

  • 8405/6A Series Power Take-Off

    Muncie Power Products’ 8405/6A Series PTO provides a rigid structure for high vibration level environments at an economical cost.

    Max Torque

    230 lbs.ft.

    Max HP (@1000 RPM)

    44 HP

    Weight

    37 lbs.

  • A30 Series Power Take Off

    Designed for Allison 3000 & 4000 Series Transmissions

    The A30 Series is a 10-bolt medium-duty, constant drive PTO rated for up to 415 lbs.ft. torque intermittent/continuous and features various product improvements allowing for easier installation and a more durable PTO for Allison 3000 and 4000 Series transmissions.



    ROTATABLE PUMP FLANGE



  • Alpha Series Power Take-Off

    The Alpha series PTO is an obsolete product. This page is used for reference material only.

    Muncie Power Products' "Alpha" Series PTO uses proven internal components from the TG Series, in a compact housing. The integral shift mechanism provides proper clearance on Dodge Ram 4 x 4 chassis with manual transmissions.

    Max Torque

    230 lbs.ft.

    Max HP (@1000 RPM)

    44 HP

    Weight

    22 lbs.

  • Cable Controls

    Muncie Power Products has the ability to provide a wide variety of cable controls.

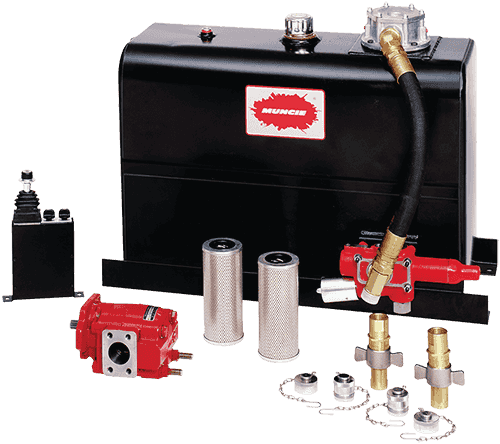

  • Combo Kit II Series Wet Line Kit

    Combo Kits are designed for dual use applications involving a standard dump trailer in conjunction with Walking Floor, live bottom, or ejector type trailers.

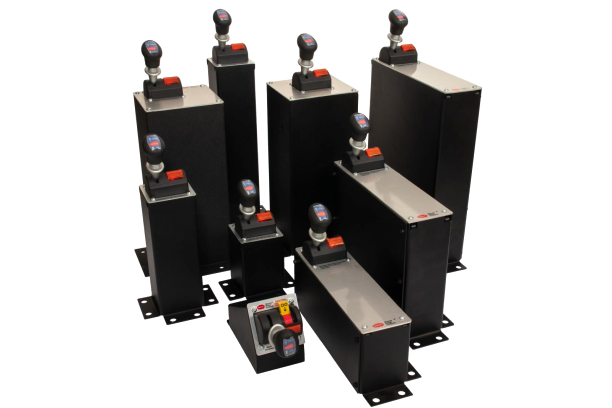

  • Control Consoles - Air

    Muncie ASC2 Series consoles for work truck applications are both functional and attractive

  • CS24/CS25 Series Power Take-Off

    The CS24/24 is an obsolete product. This page is used for reference material only.

    Designed with the same technology as the CS10 Series, the CS24 Series PTO is 20 percent smaller. CS PTOs are engaged by means of a direct mounted solenoid, which activates an internal wet clutch pack. With this feature, installation is made simple with a single hose connection

    Max Torque

    325 lbs.ft.

    Max HP (@1000 RPM)

    62 HP

    Weight

    52 lbs.

  • CS6/CS8 Series Power Take-Off

    Designed to work on Allison 1000 and 2000 series automatics and many other current manual transmissions, the CS6/8 Series PTOs offer direct mount pump options and a drag brake. Upgrading to a multi-disk clutch brake allows for absolute shaft stoppage.

    Max Torque

    350 lbs.ft.

    Max HP (@1000 RPM)

    67 HP

    Weight

    47 lbs.

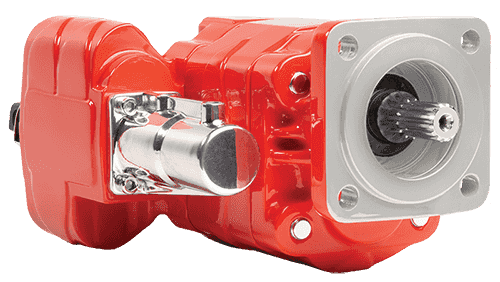

  • E Series Dump Pump

    The E Series dump pumps are the standard equipment for tandem, tri-axle dumps and dump trailers with high volume cylinders. These dump pumps are available in both direct and remote mount configurations with two or three line plumbing and air, cable or lever shift options.

    Displacement (Cu.In./Rev)

    5.2 - 6.37

    GPM (@1000 RPM)*

    22.5 - 27.6

    Max Pressure

    2,500 PSI

    *Flow rates are theoretical.

  • FR3C Series Power Take-off

    The FR3C is an obsolete product. This page is used for reference material only.

    Muncie Power's FR3C power take-off gives you the maximum torque available from the Ford Torqshift transmission with a keyed shaft output.

    2016 (Built after Jan. 6) F650-F750 (Diesel) with 6R140

    Max Torque

    237 lbs.ft.

    Max HP (@1000 RPM)

    45 HP

  • HS24 SERIES Power Take-Off

    The HS24 series PTO is an obsolete product. This page is used for reference material only.

    A solution for limited clearance applications, the HS24 Series PTO features a sculptured housing designed to clear mounting obstructions and a direct mount solenoid for a clean and simple installation.

    Max Torque

    325 lbs.ft.

    Max HP (@1000 RPM)

    62 HP

    Weight

    52 lbs.

  • Metal Round Reservoirs

    Muncie's metal round reservoirs are available in both aluminum and steel and are designed for hard working, continuous-duty applications that may generate high amounts of heat and other applications where a metal reservoir is preferred.

  • Metal Upright Reservoirs

    Muncie offers metal upright tanks available in both aluminum and steel. Aluminum reservoirs are offered when weight, appearance and performance are important, while steel is the preferred solution when quality and dependability are required. Our premium quality reservoir is designed for hard working, continuous-duty applications that may generate high amounts of heat and other applications where a metal tank is preferred.



  • Pin-Pin Cylinders

    The combination of strict machining tolerances, solid stop contact faces, and larger overlap between the stages has resulted in one of the strongest and most stable cylinder columns currently available on the market. These improvements help to increase safety for dumping applications, helping to prevent accidents due to vehicle roll-over.

    Stroke

    84 - 285 in

    Max Pressure

    2,900 PSI

  • PL Series Gear Pump

    The PL Series is designed to meet the application needs of either a pump or a motor with displacements between 14 GPM and 30 GPM at 1000 RPM.

    Displacement (Cu.In./Rev)

    3.18 - 7.01

    GPM (@1000 RPM)*

    13.8 - 30.3

    Max Pressure

    3,000 PSI

    *Flow rates are theoretical.

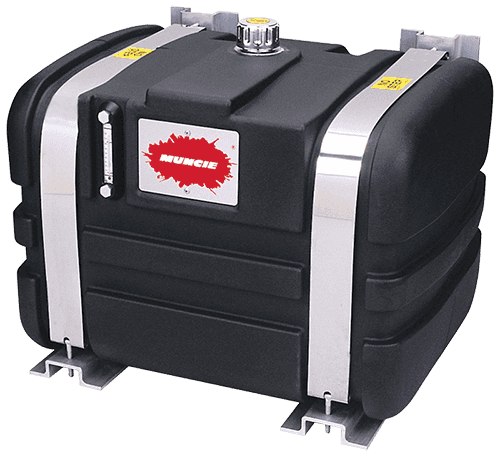

  • Polyethylene Reservoirs

    Our polyethylene reservoirs are available in box and upright design and are designed for easy installation. Polyethylene tanks are intended for use in intermittent-duty applications where heat buildup is not an issue.

  • S Series Hoist Pump

    The Muncie Power S Series hoist pump was designed specifically for use on small single or tandem axle dump trucks.

    Displacement (Cu.In./Rev)

    1.47 - 3.94

    GPM (@1000 RPM)*

    6.4 - 17.1

    Max Pressure

    3,000 PSI

    *Flow rates are theoretical.

  • Steel Box Reservoirs

    Muncie steel box reservoirs are offered in a large variety of sizes from compact to midsize models, providing a wide range of product diversity. Our reservoirs feature multiple return ports and are designed for easy installation by utilizing welded mounting rails with punched holes.

  • TG Series Power Take-Off

    As the most versatile and widely used double gear type power take-off in the industry, the TG Series is available with 10 speed ratios, 19 shift types, 19 output shaft options and input gears for all popular transmissions.

    Max Torque

    285 lbs.ft.

    Max HP (@1000 RPM)

    54 HP

    Weight

    22 lbs.

  • Trunnion Mount Cylinders

    Muncie Power's Trunnion Mount cylinders not only offer the mounting style that allows for increased capacity in the dump body by allowing for significant reduction or elimination of the dog house, but also many other features. With the strict machining tolerances, solid stop contact faces, and larger overlap between stages the Muncie Power cylinders are one of the strongest and most stable cylinders on the market.

    Stroke

    82 - 194 in

    Max Pressure

    2,900 - 3,200 PSI

  • V080 Directional Control Valve

    The V080 is constructed with high grade iron castings and nickel-plated spools for use in high pressure applications and can be configured with many different spool, control, and positioner options. The V080 is designed for flow rates up to 30 GPM (114 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service & support.

    Flow Capacity (Nominal)

    21 GPM (80 LPM)

    Flow Capacity (Maximum)

    30 GPM (114 LPM)

    Max Pressure (1-3 Sections)

    5,075 PSI (350 BAR)

    Max Pressure (4-6 Sections)

    4,650 PSI (320 BAR)

    Max Pressure (7-10 Sections)

    4,350 PSI (300 BAR)

  • V130 Directional Control Valve

    The V130 is constructed with high grade iron castings and nickel-plated spools for use in high pressure applications and can be configured with many different spool, control, and positioner options. The V130 is designed for flow rates up to 55 GPM (208 LPM), and offers superior performance in a compact package. Muncie Power Products takes pride in supplying the highest quality products along with outstanding service & support.

    Flow Capacity (Nominal)

    34 GPM (130 LPM)

    Flow Capacity (Maximum)

    55 GPM (208 LPM)

    Max Pressure (1-3 Sections)

    5,440 PSI (375 BAR)

    Max Pressure (4-6 Sections)

    5,075 PSI (350 BAR)

    Max Pressure (7-10 Sections)

    4,710 PSI (325 BAR)

  • Wet Line Kit

    Muncie first packaged wet line kits nearly four decades ago and was the innovator of polyethylene reservoirs.
