MC1 Series Power Take Off

HIGHER TORQUE,
EASIER INSTALL,
LONGER LIFE

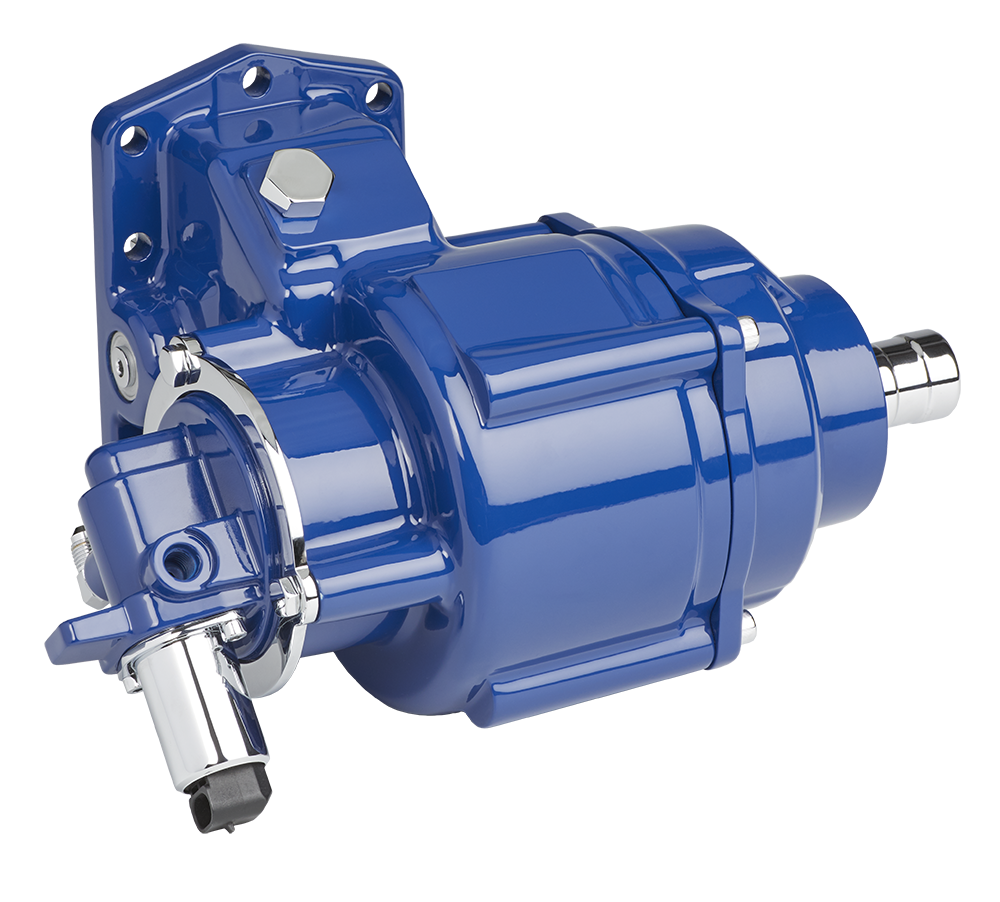

The first in the Titan™ Class of power take-offs, the Titan MC1 Series is a medium-duty, 10-bolt mounting, clutch shift PTO. Designed to fit Allison 3000/4000 Series transmissions, the Titan MC1 showcases various product improvements including a robust clutch pack design, maximized gear design, internally pressure-lubricated tapered roller bearings for long life and an updated shift cover allowing 360-degree rotation for easier installation. Featuring a redesigned housing, the Titan MC1 Series allows for maximum clearance for installation on tight-fitting envelopes including Hino trucks.



AVAILABLE WITH THE NEW MUNCIE START

The Muncie Start is an electronically controlled, modulated clutch engagement system from Muncie Power Products that eliminates torque spikes through the power take-off, truck drivetrain and mounted auxiliary equipment upon startup for high-inertia loads. Allowing for a smooth engagement of the power take-off, Muncie Start increases the life of the PTO and driven mechanical components.

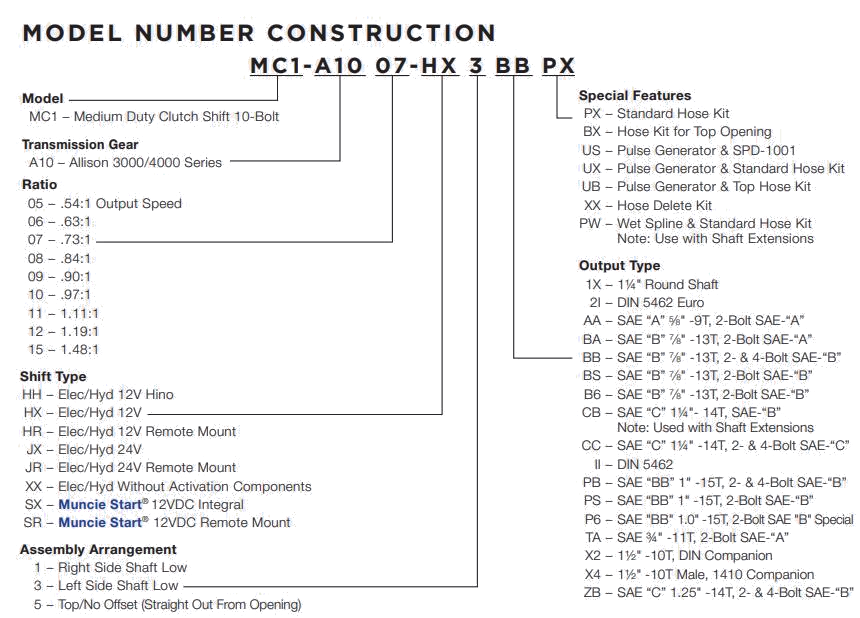

CS24/25 & HS24 to MC1 Model Number Conversion



PTO Series
Gear
Ratio
Shift Type
Assembly
Output
Feature

MC1 - xxx xx - xx - x xx xx

• Increased clearance for easier access
• Unique shift cover allows 360-degree rotation
• Improved clutch pack design for increased life
• Improved tapered roller bearings increase life of PTO
• Increased input shaft diameter to increase life and durability
• Reduced leak paths
• Pump flange rotation at 30-degree intervals
• Available with all options previously available on CS24/25 and HS24
• Self-adjusting shaft brake
• Single torque rating
• Compatible with Muncie Power’s EX Drive shaft extension
• Maximized gear design for improved life and noise reduction

Installation Instructions
  • MC1 Installation Instructions
    IN16-07
    VIEW
  • MC1 Activation Instructions
    IN17-03
    VIEW
  • MC1 PTO Operator's Manual
    IN17-04
    VIEW
  • MC1 Hino Activation Instructions
    IN17-05
    VIEW
  • MC1 Muncie Start Instructions
    IN17-09
    VIEW
  • MC1 EX Drive Installation Manual
    IN17-06
    VIEW
  • MC1 Rebuild Instructions
    IN18-05
    VIEW
Quick Reference
  • MC1 Model Number Construction Chart
    QRS1_07
    VIEW
Service Parts Manual
  • Titan EX Drive Parts List
    SP18-04
    VIEW
  • MC1 Service Parts Manual
    SP16-06
    VIEW
Specification Sheet
  • MC1 Spec Brochure
    MP16-06
    VIEW
  • MC1 EX Drive Spec Brochure
    MP17-03
    VIEW
Speed Ratio Intermittent/Continuous HP (kW) @ 1,000 RPM Intermittent/Continuous Torque lbs.ft. (Nm) Weight lbs. (Kg)
05 77 (57) 400 (542) 47.2 (21.4)
06 77 (57) 400 (542) 47.2 (21.4)
07 79 (59) 415 (563) 47.2 (21.4)
08 69 (51) 360 (488) 47.2 (21.4)
09 65 (48) 340 (461) 47.2 (21.4)
10 59 (44) 310 (420) 47.2 (21.4)
11 52 (39) 275 (373) 47.2 (21.4)
12 50 (37) 265 (359) 47.2 (21.4)
15 39 (29) 205 (278) 47.2 (21.4)

*FR6Q limit in mobile applications continuous intermittent
