CS6/CS8 Series Power Take-Off

The CS6 and CS8 series are Clutch Shift PTO's designed to work well on Allison 1000 & 2000 series automatics and many current manual transmissions. Like all of Muncie's "Clutch Shift" line of PTOs, the CS6/8 offers popular direct mount pump options as well as Muncie's patented shaft brake, a standard feature. An upgraded multi-disk clutch brake can be used where absolute shaft stoppage is required.

  • 19 transmission input gears: Fits most popular automatic and manual transmissions
  • Three remote mount output shafts in keyed and flange types: Versatility for remote pump drives
  • S.A.E. "A", "B", and "BB"; DIN 5462 direct mount pump options: Fits most popular pumps
  • Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
  • Patented Muncie drag brake: Prevents shaft rotation in "OFF" mode
  • Optional pulse generator: Lets System Protection Device monitor PTO shaft speed
Brochure
  • CS6/8 Series Spec Brochure
    MP15-25
    VIEW
Installation Instructions
  • C6SB for 2014 Ram 6.4L Gas Engine Installation Manual
    IN14-04
    VIEW
  • CS6 - "S" & "R" Drop-In Solenoid Installation Supplement
    I3029
    VIEW
  • Electric over Hydraulic Supplemental Instructions for CS PTO
    IN02-03
    VIEW
  • CS6 and CS8 Power Take-off Installation Instructions
    IN84-03 (CS6/8)
    VIEW
  • Hino PTO Wiring Installation for Allison 2500
    IN16-03
    VIEW
Service Parts Manual
  • CS6/CS8 Service Parts Manual
    SP96-05
    VIEW
  • CS6/CS8 Output Shaft Sub Assemblies
    SP03-01
    VIEW
PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio
Intermittent HP@1000 RPM
Intermittent Torque lbs.ft.
Continuous Torque lbs.ft.
Intermittent (kw)@1000 RPM
Intermittent Torque (NM)
Continuous Torque (NM)
03 57 300 210 (43) (407) (285)
04 57 300 210 (43) (407) (285)
05 57 300 210 (43) (407) (285)
06 57 300 210 (43) (407) (285)
07 57 300 210 (43) (407) (285)
09 52 275 193 (39) (373) (261)
12 52 275 193 (39) (373) (261)
14 52 275 193 (39) (373) (261)


ASSEMBLY ARRANGEMENTS

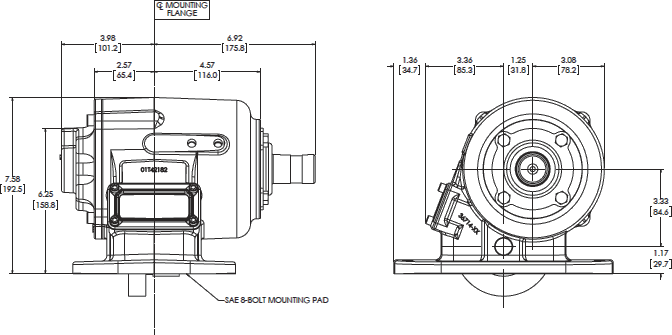

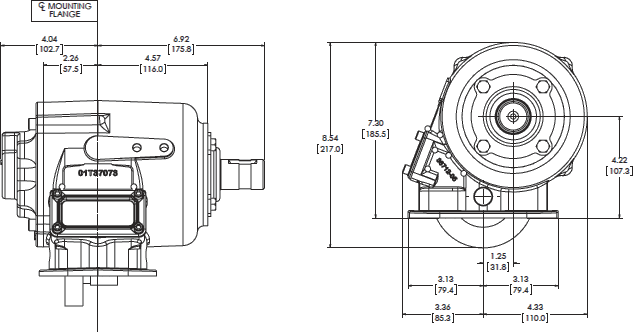

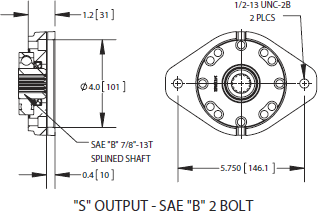

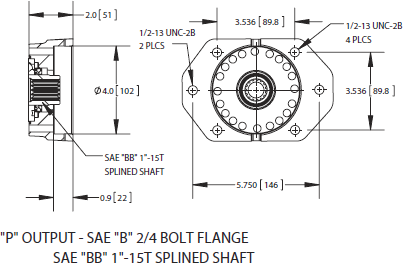

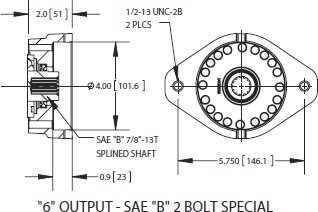

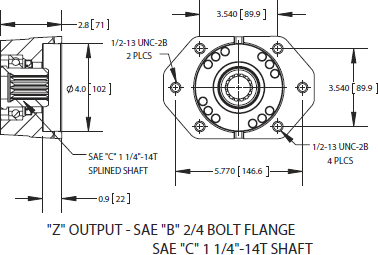

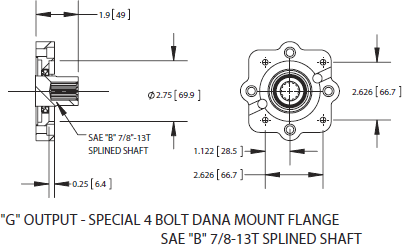

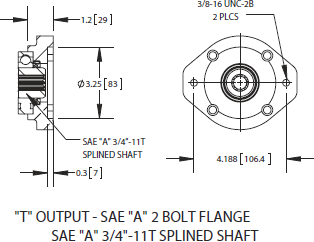

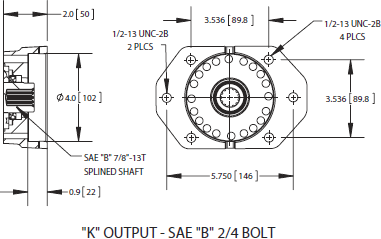

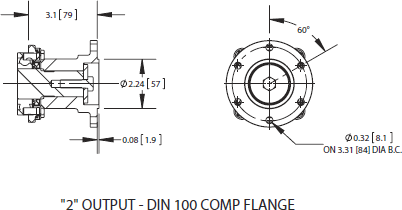

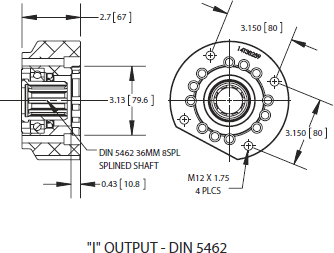

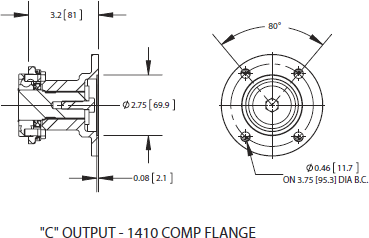

DIMENSIONAL DRAWINGS


CS6

CS8


The Muncie Power Take-Off is warranted to be free of defects in material or workmanship and to meet Muncie’s standard written specifications at the time of sale. Muncie’s obligation and liability under this warranty is expressly limited to repairing or replacing, at Muncie’s option, within one year after date of original installation any defective part or parts or any product not meeting the specifications.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. MUNCIE MAKES NO WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR ANY PARTICULAR PURPOSE. MUNCIE’S OBLIGATION UNDER THIS WARRANTY SHALL NOT INCLUDE ANY TRANSPORTATION CHARGES OR COSTS OF INSTALLATION OR ANY LIABILITY FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OR DELAY. THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE, AND MUNCIE’S LIABILITY WITH RESPECT TO ANY CONTRACT OR SALE OR ANYTHING DONE IN CONNECTION THEREWITH, WHETHER IN CONTRACT, IN TORT, UNDER ANY WARRANTY, OR OTHERWISE, SHALL NOT, EXCEPT AS EXPRESSLY PROVIDED HEREIN, EXCEED THE PRICE OF THE PRODUCT OR PART ON WHICH SUCH LIABILITY IS BASED.

If requested by Muncie, products or parts for which a warranty claim is made are to be returned transportation prepaid to a Muncie Service Center. Any installation or use not in accordance with catalog or package instructions, other improper use, operation beyond capacity, substitution of parts not approved by Muncie, use with equipment other than the equipment on which the Power Take-Off is first installed, or alteration or repair made to the Power Take-Off other than at a Muncie Service Center, shall void this warranty. No employee or representative of Muncie is authorized to change this warranty in any way or to grant any other warranty.

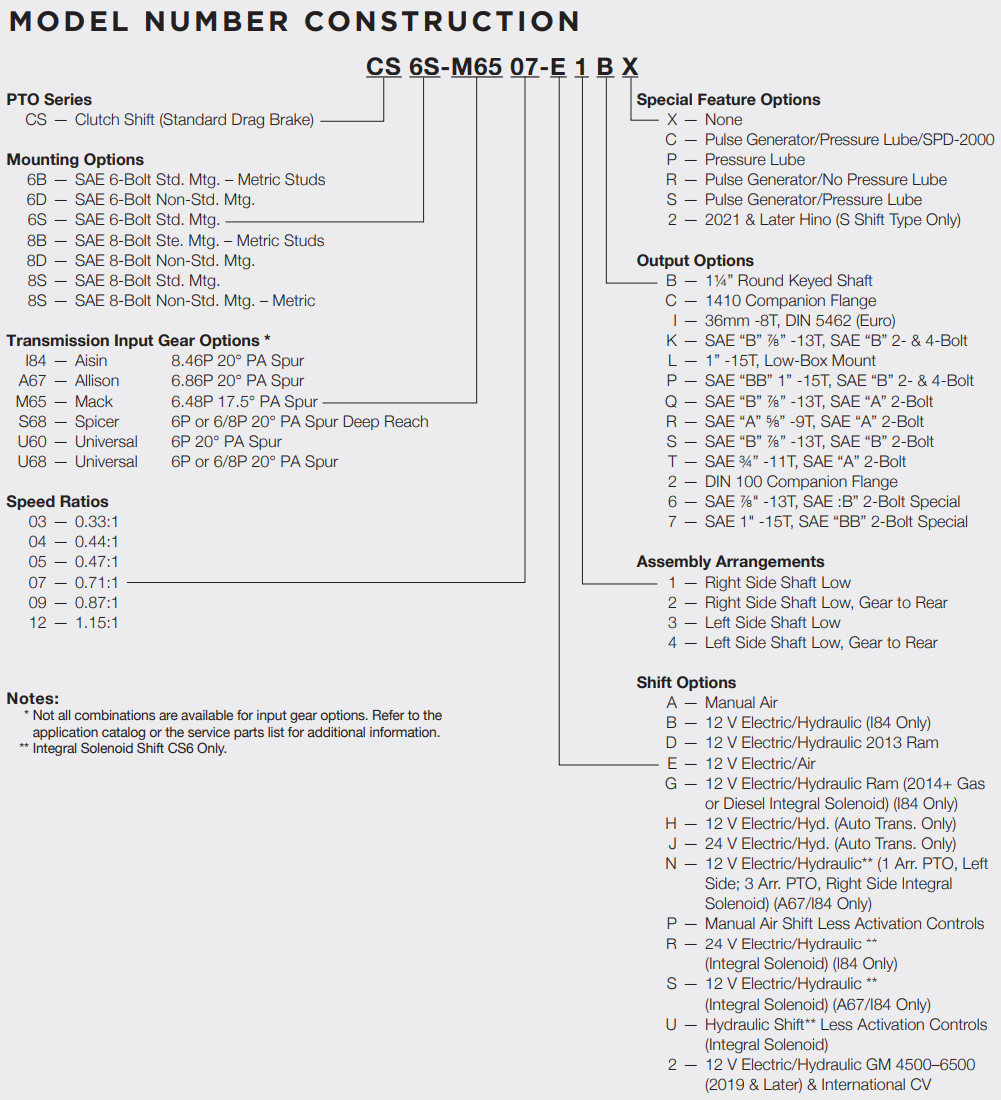

MODEL NUMBER CONSTRUCTION
