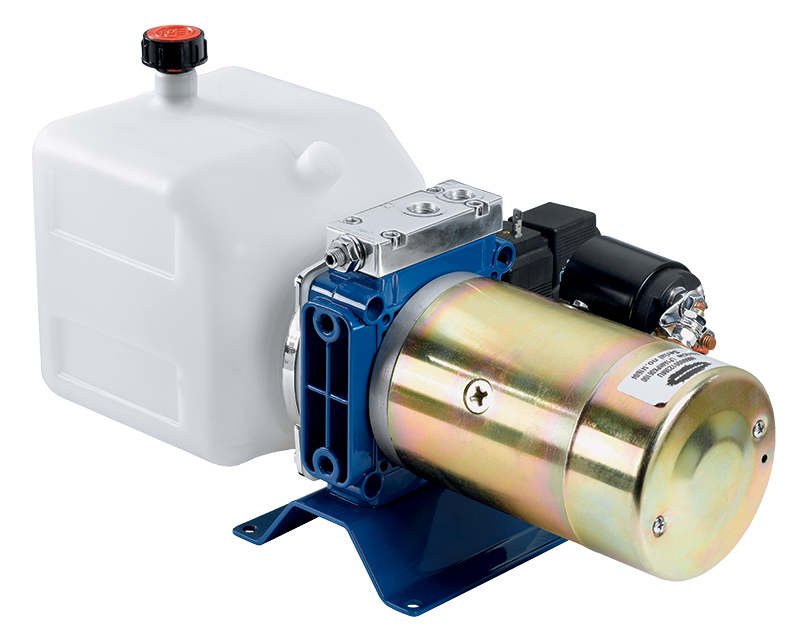

DC Power Packs
24 Volt and 12 Volt DC Power Packs can be used to provide hydraulic power for light duty applications like lift gates, snow plows, dump bodies, and hay bale spikes. Power packs are generally used on single axle chassis where the PTO aperture is inaccessible or not available.
Muncie Power offers power packs in a variety of pump and reservoir sizes as well as valving options. A corded, push button remote is also standard.
- Pre-assembled package: Easy installation
- Steel or polyethylene reservoirs: Choice
- Nine reservoir sizes: To suit application requirement
- Six pump sizes: To suit application requirement
- Horizontal or vertical mounting: Easy installation
- Cast aluminum manifold: Accepts industry standard valves
- S.A.E. o-ring porting: Easy installation
DC Power Pack Spec BrochureMP16-04
DC Power Pack Installation and OperationIN03-05
DC Power Pack Service Parts LP1A****-020-CSP19-08
DC Power Pack Service Parts LP1A-2****-000-ASP19-07
DC Power Pack Service Parts LP1A-2****-100-CSP19-04
DC Power Packs Parts List and Service ManualSP19-02
Individual DC Power Packs LP1A-0****-000-ASP19-03
Experience Reliability & Quality with the DC Power PackWhitney Rodeffer – Marketing Communications Coordinator
|Part Number||Typical Application||Description||Spec Sheet|
|LP1A-0HXX06-000-A||Aux. Power Supply||Pump / Motor only||Download|
|LP1A-2HPJ06-000-A||Aux. Power Supply||Pump / Motor / 5.3 Qt. Res. - Accepts NFPA-D03 valves||Download|
|LP1A-2HPF06-100-C||Snow Plow (basic)||Plow up/down, left/right, PO checks, 4 button control, Crossover RVs, 1.5 Qt. Res.||Download|
|LP1A-3HPJ06-020-C||SA cylinder||2P3W valve, check, relief valve, corded control, 5.3 Qt. Res.||Download|
|LP1A-3HPJ06-060-M||Lift Gate (SA Cyl)||2P3W valve, check, relief valve, manual control, 5.3 Qt. Res.||Download|
|LP1A-4HPJ06-000-C||DA Cylinder||2P4W valve, check, relief valve, corded control, 5.3 Qt. Res.||Download|
|LP1A-4HPJ06-020-C||Bale Spike (DA Cyl)||2P4W valve, check, PO checks, relief valve, corded control, 5.3 Qt. Res.||Download|
|LP1A-4HPK06-100-C||DA Dump Body||3P4W valve, check, relief valve, port relief, flow control, corded control, 8.5 Qt. Res.||Download|
|LP1A-4HPJ06-040-M||DA Cylinders||3P4W valve, check, relief valve, manual control, 5.3 Qt. Res.||Download|
|LP1A-1VPL06-000-A||Aux. Power Supply||10.5 Qt. Poly Res., check, relief valve, vertical mounting -- WITH enclosure||Download|
Muncie’s DC Power Pack is warranted against any defect in material and workmanship which existed at the time of sale by Muncie, according to the following provisions, subject
to the requirements that the product must be used only in accordance with catalogue and package instructions.
The DC Power Pack is warranted for a period of one year from the date of installation*, or eighteen months from the marked date code, which ever comes first. If during the warranty period the DC Power Pack fails to operate to Muncie’s specifications due to a defect in any part in material or workmanship that existed at the time of sale by Muncie, the defective part will be repaired or replaced, at Muncie’s election, at no charge, if the defective part is returned to Muncie with transportation prepaid.
Warning: The above warranty shall terminate if any alterations or repairs are made to the DC Power Pack other than by Muncie Power Products, or if the DC Power Pack is used on any equipment other than the equipment upon which it is first installed.
THE FOREGOING WARRANTIES ARE IN LIEU OF ALL OTHER OBLIGATIONS AND LIABILITIES, INCLUDING NEGLIGENCE AND ALL WARRANTIES OF MERCHANTABILITY AND SUITABILITY, EXPRESSED OR IMPLIED, AND STATE MUNCIE’S ENTIRE AND EXCLUSIVE LIABILITY AND BUYER’S EXCLUSIVE REMEDY FOR ANY CLAIM OF DAMAGES IN CONNECTION WITH THE SALE, REPAIR OR REPLACEMENT OF THE ABOVE GOODS, THEIR DESIGN, INSTALLATION OR OPERATION. MUNCIE WILL IN NO EVENT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, AND OUR LIABILITY UNDER NO CIRCUMSTANCES WILL EXCEED THE CONTRACT PRICE FOR THE GOODS FOR WHICH LIABILITY IS CLAIMED.
